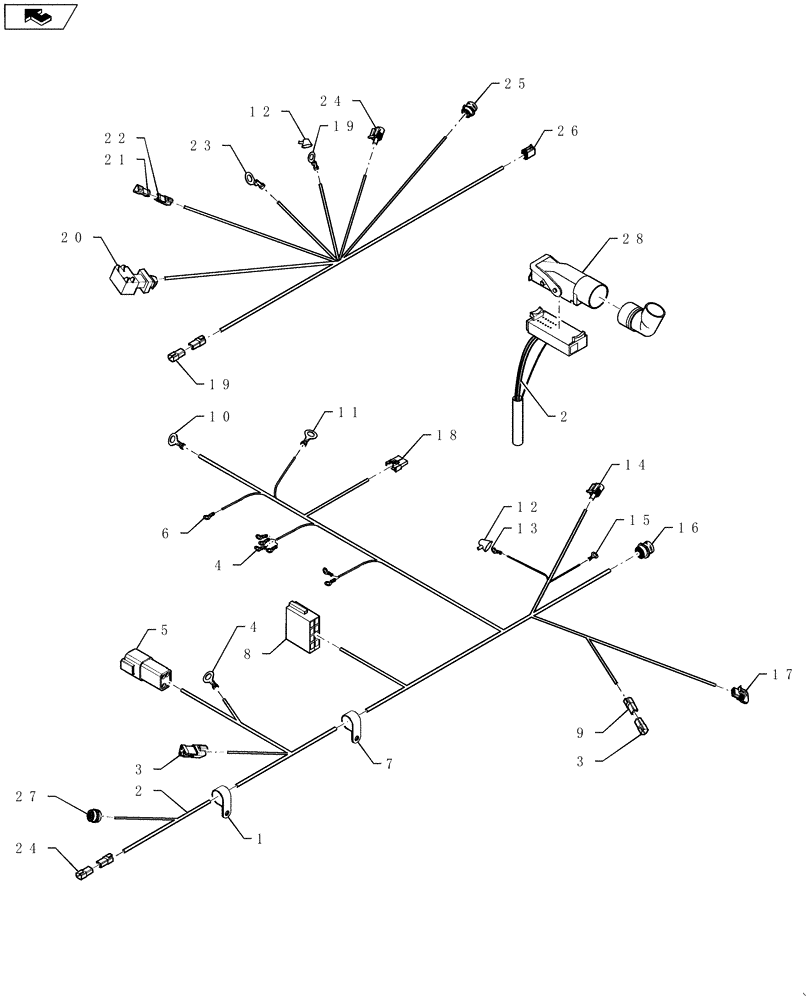

Запчасти Case 621F (55.100.09[01]) - HARNESS, ENGINE AND REAR CHASSIS (55) - ELECTRICAL SYSTEMS

1

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

1шт.

2

Included with Harness, On Item 1 Fig 55.100.09 (02)

5шт.

3

245483C1

ELEC CONNECTOR,Male, 2 Pin

2-Cavity Recepticle

2шт.

4

1964718C1

TERMINAL CONNECTOR

Ring

7шт.

5

245485C1

ELEC CONNECTOR,Male, 3 Pin

3-Cavity Recepticle

1шт.

6

1964720C1

TERMINAL CONNECTOR

Ring

1шт.

7

515-22270

CLAMP,1-1/16", Insul, 5/16" Bolt

1шт.

8

194788A1

CONNECTOR, 2-POLE

2-Cavity Plug

1шт.

9

245482C1

ELEC CONNECTOR,2 Pin

2-Cavity Plug

1шт.

10

386008A1

TERMINAL CONNECTOR

Ring

1шт.

11

382256A1

TERMINAL CONNECTOR

Ring

1шт.

12

399470R1

BOOT

Terminal Cover

2шт.

13

Ring Terminal, Included with Harness, On Item 1 Fig 55.100.09 (02)

1шт.

14

8602417

TERMINAL CONNECTOR,Female

1-Cavity Plug

1шт.

15

1964708C1

TERMINAL CONNECTOR

Ring

1шт.

16

291718A1

ELEC CONNECTOR,Female, 2 Pin

2-Pin Plug

1шт.

17

87709809

ELEC CONNECTOR

1шт.

18

87713291

WIRE CONNECTOR

35-Cavity Recepticle

1шт.

19

Included with Harness, On Item 1 Fig 55.100.09 (02)

2шт.

20

256340A1

CONNECTOR, ELEC

CONNECTOR

1шт.

21

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

22

225295C1

ELEC CONNECTOR,Female, 3 Pin

3-Cavity Plug

1шт.

23

Included with Harness, On Item 1 Fig 55.100.09 (02)

1шт.

24

225316C1

ELEC CONNECTOR,Female, 2 Pin

2-Cavity Plug

2шт.

25

409084A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

26

3227856R1

CONNECTION

2-Cavity Recepticle

2шт.

27

225320C1

ELEC CONNECTOR

8-Cavity Recepticle

1шт.

28

87632418

KIT

Plug

1шт.
