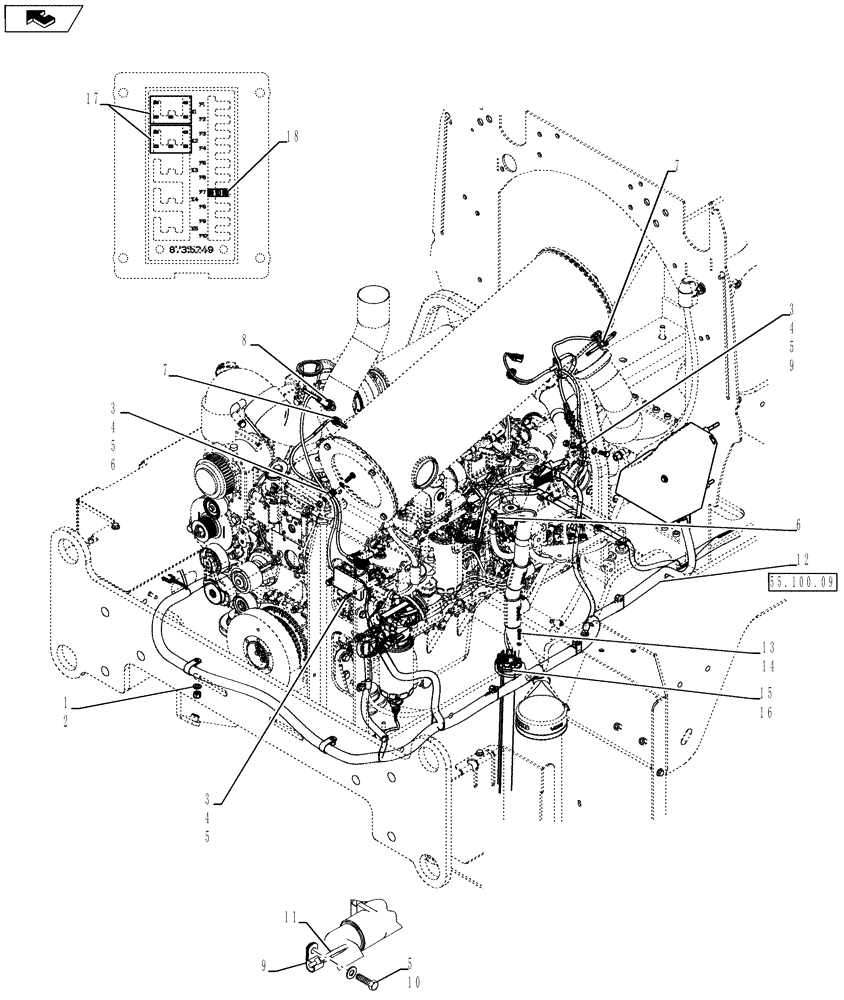

Запчасти Case 621F (55.100.07[01]) - ENGINE HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

1

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

3

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

6

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

2шт.

7

47478880

TEMPERATURE SENDER,50mm, Closed

2шт.

8

84422745

SENSOR

Nox

1шт.

9

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

10

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

12

84494410

HARNESS

See Fig. 55.100.09, Serial Range: -NEF222098

1шт.

12

47654548

WIRE HARNESS

, Start Serial: NEF222099

1шт.

12

47359834

WIRE HARNESS

Tier 2, IR

1шт.

13

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

14

463-11016

SCREW,Hex Hd, #10-24 x 1"

5шт.

16

87542710

SENDER UNIT

Fuel Level

1шт.

17

87312626

RELAY,24V

Micro 5-Pin

2шт.

18

121412A1

FUSE,10A, Mini, Red

1шт.
