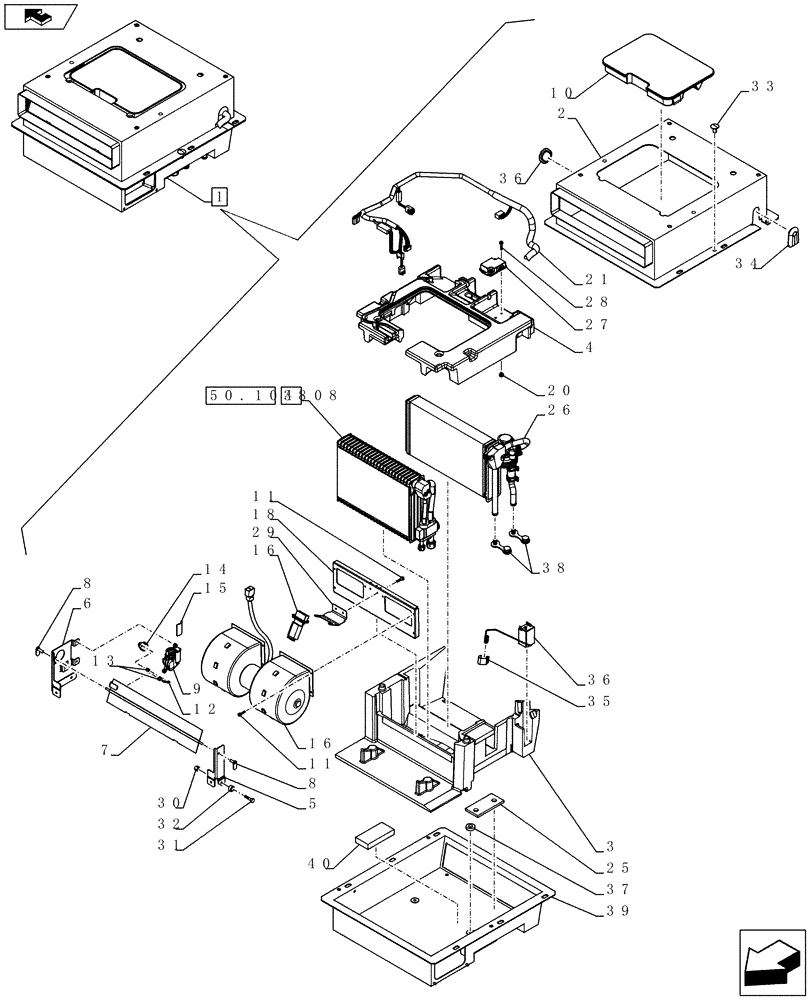

Запчасти Case 621F (50.104.07) - AIR CONDITIONING WITH HEATER ASSEMBLY (50) - CAB CLIMATE CONTROL

1

84192329

AIR CONDITIONER

Manual Inc. 2-38

1шт.

2

87472438

BOX

Upper

1шт.

3

87474170

SHIELD

Lower

1шт.

4

87472439

BOX

Upper

1шт.

5

Right Fastening Bracket Included With Item # 7

1шт.

6

Left Fastening Bracket Included With Item # 7

1шт.

7

87643958

FLAP

Recirculation

1шт.

8

87643957

BUSHING

For Recirculation Flap

2шт.

9

87528689

ACTUATOR

1шт.

10

87529462

COVER

Inspection Trapdoor

1шт.

11

Screw Included With Item # 1

13шт.

12

87472436

TIE-ROD

1шт.

13

87643955

BUSHING

2шт.

14

87472437

LEVER

1шт.

15

Seal Actuator Included With Item # 1

1шт.

16

84192331

BLOWER ASSY.

Electric Fan

1шт.

17

Bracket Included With Item # 1

1шт.

18

Pipe Fastener Included With Item # 1

1шт.

19

87528688

RESISTOR

1шт.

20

87529453

BOX

1шт.

21

84192332

WIRE HARNESS

Assembled Cable

1шт.

22

87728778

SEAL

Seal

1шт.

23

87529487

SOLENOID

1шт.

24

87529487

SOLENOID

Driver Solenoid

1шт.

25

Plastic Nut Included With Item # 1

2шт.

26

Screw Included With Item # 1

2шт.

27

87728776

SEAL

1шт.

28

Screw Included With Item # 1

4шт.

29

Shield Included With Item # 1

5шт.

30

Nut Included With Item # 1

5шт.

31

Plug Included With Item # 1

3шт.

32

87476710

GROMMET

1шт.

33

87472441

PLUG

Cap

1шт.

34

Protective Cap Included With Item # 1

2шт.

35

87577360

SPRING CLIP

1шт.

36

87529621

THERMOSTATIC SWITCH,Air Conditioning

1шт.

37

87728777

SEAL

1шт.

38

87529493

EVAPORATOR

See Fig 50.104.08

1шт.
