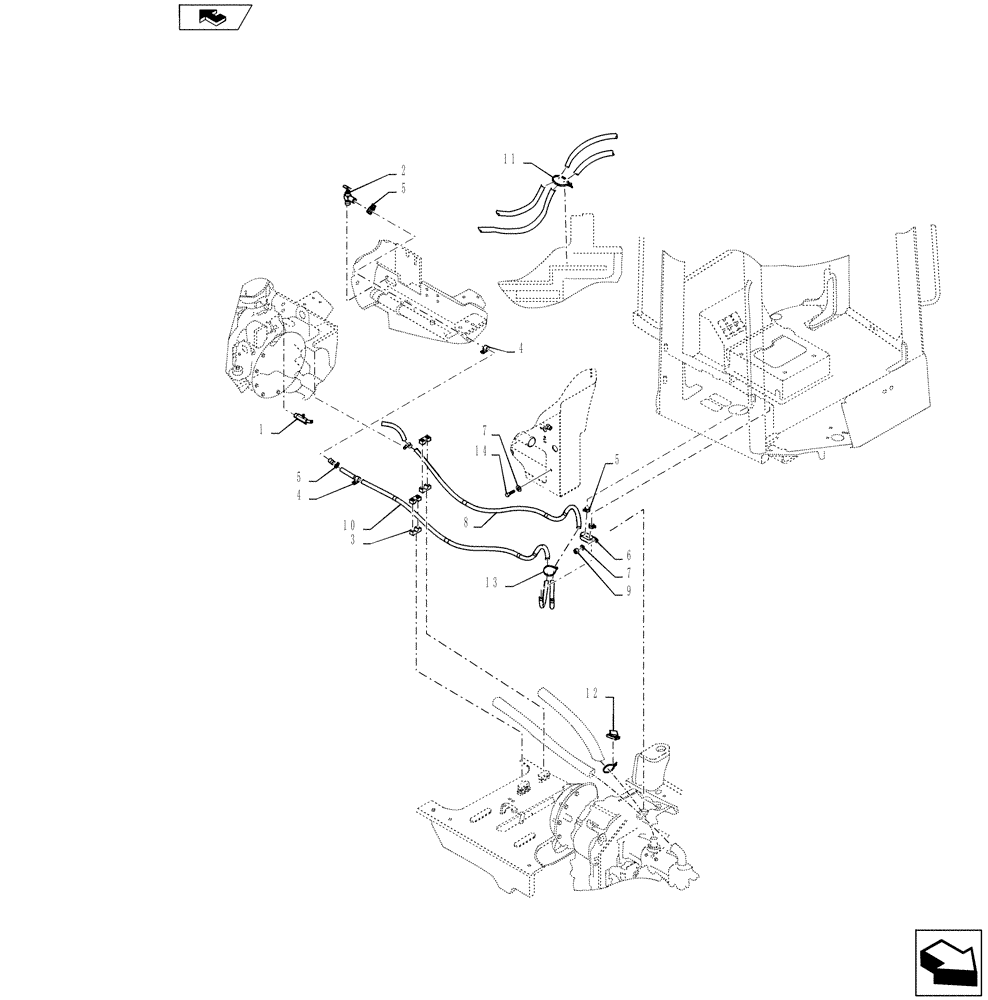

Запчасти Case 621F (50.104.05[01]) - HEATER, PLUMBING AND MOUNTING (50) - CAB CLIMATE CONTROL

1

84230410

ADAPTER

3/4-14nptf to 5/8 & 3/8

1шт.

2

301803R1

SHUT-OFF VALVE

90 degree

1шт.

3

367489A1

BLOCK

Tube Mounting

3шт.

4

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

2шт.

5

1954736C1

HOSE CLAMP,#24

4шт.

6

31-1081

CLAMP

Double

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

8

1327781C2

HOSE,15.50 mm ID x 2921.00 mm

1шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

1975801C1

HEATER HOSE,15.50 mm ID x 2743.00 mm

Heater Supply

1шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

12

84266053

TUBE SPACER

1шт.

13

84266050

CABLE TIE,384mm L, Polyamide

Strap cable tie

2шт.

14

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.
