Запчасти Case 621F (41.200.13) - JOYSTICK STEERING WITH AUX STEERING (41) - STEERING

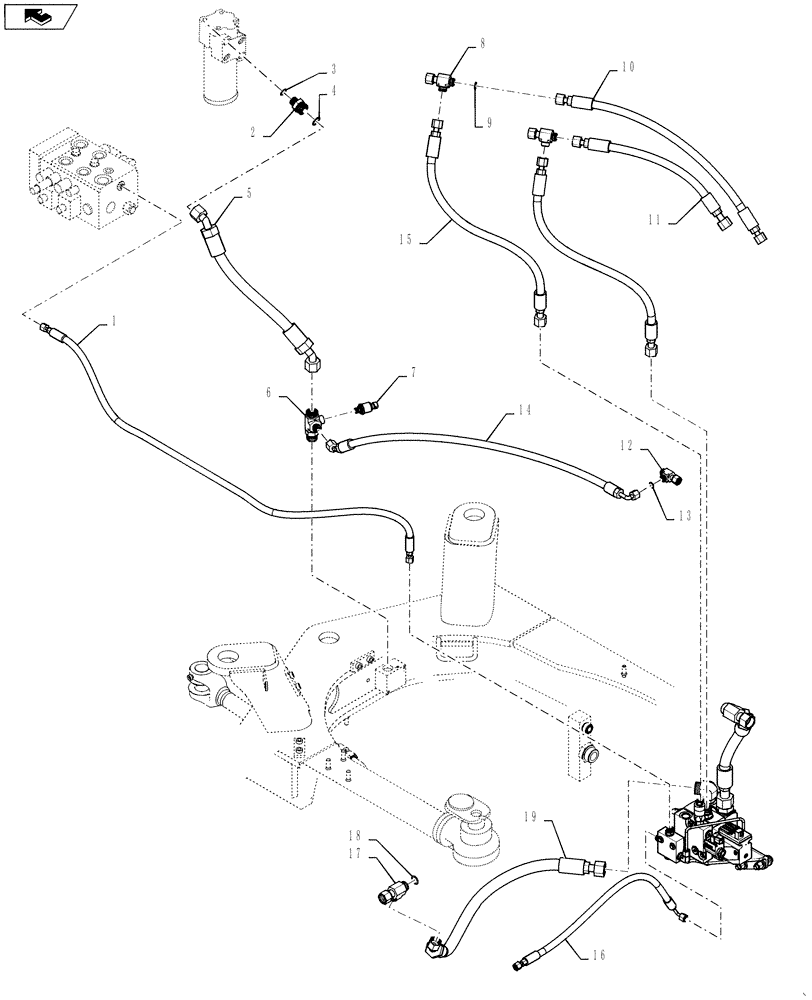

Схема запчастей Case 621F - (41.200.13) - JOYSTICK STEERING WITH AUX STEERING (41) - STEERING
8
15
18
2
10
4
14
3
1
17
5
11
9
12
6
16
home
13
7
19

Артикул

Название

Примечание

Количество

1

87653975

HOSE

Steering Load Sense

1шт.

2

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl 3 - 4

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

5

84216468

HOSE

Steering Return With JSS

1шт.

6

84215653

TEE

1шт.

7

87363483

SENDER UNIT

Pressure

1шт.

8

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 9

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

87492561

HOSE ASSY.

Steering Cylinder

1шт.

11

87492558

HOSE ASSY.

RH Side Rod

1шт.

12

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 13

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

14

84215436

HOSE

Bleeding To Tank

1шт.

15

87756165

HOSE

To Cylinder

2шт.

16

87478817

FUEL HOSE,9.53 mm ID x 305.00 mm

Steering LS

1шт.

17

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 18

1шт.

18

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

19

84168700

HOSE ASSY.

Suction Valve

1шт.

Выбрано товаров: 19
