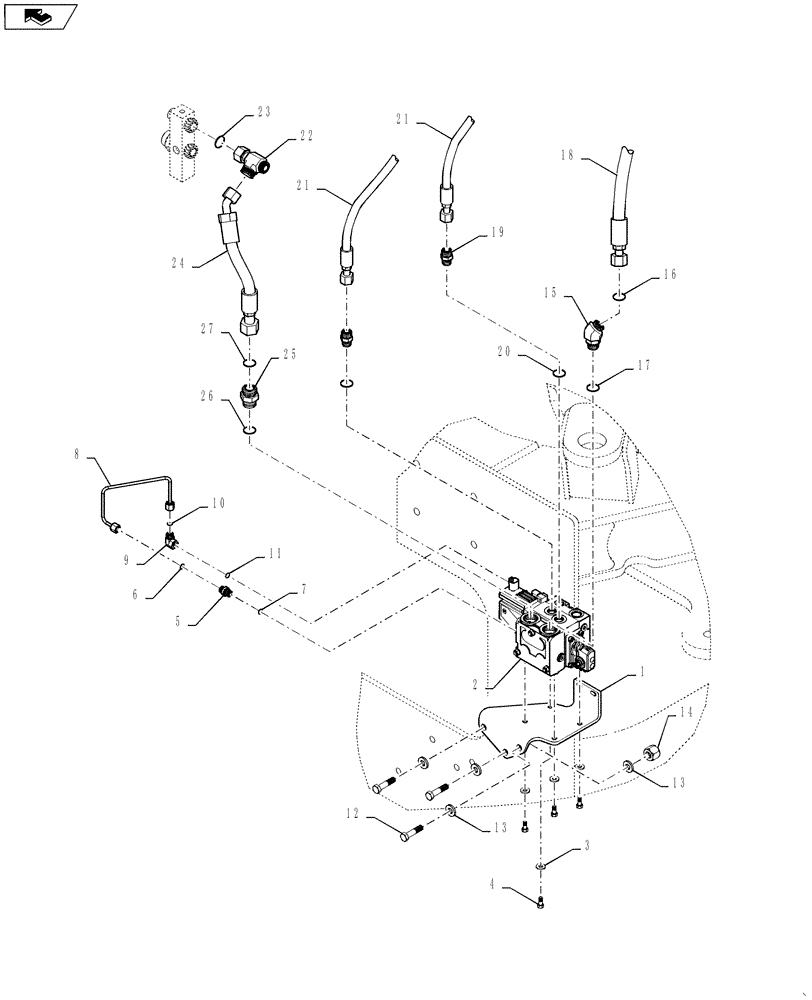

Запчасти Case 621F (41.200.06) - STEERING STANDARD WITH JOYSTICK (41) - STEERING

1

84165625

BRACKET

Valve Steering CNH Black

1шт.

2

84238869

STEERING VALVE

Proportional

1шт.

3

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

5

87661868

HYD CONNECTOR

Incl 6 - 7

2шт.

6

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

7

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

8

84165082

HYD TUBE,0.25" OD

Steering

1шт.

9

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 10 - 11

1шт.

10

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

3шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

14

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

15

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 16 - 17

1шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

17

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

18

84162549

HOSE ASSY.

1шт.

19

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 20

2шт.

20

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

21

87756165

HOSE

To Cylinder

2шт.

22

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl 23

1шт.

23

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

24

84165883

HOSE ASSY.

To Tank

1шт.

25

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 26 - 27

1шт.

26

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

27

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.
