Запчасти Case 621F (41.200.05) - STEERING NO JOYSTICK WITH AUX STEERING (41) - STEERING

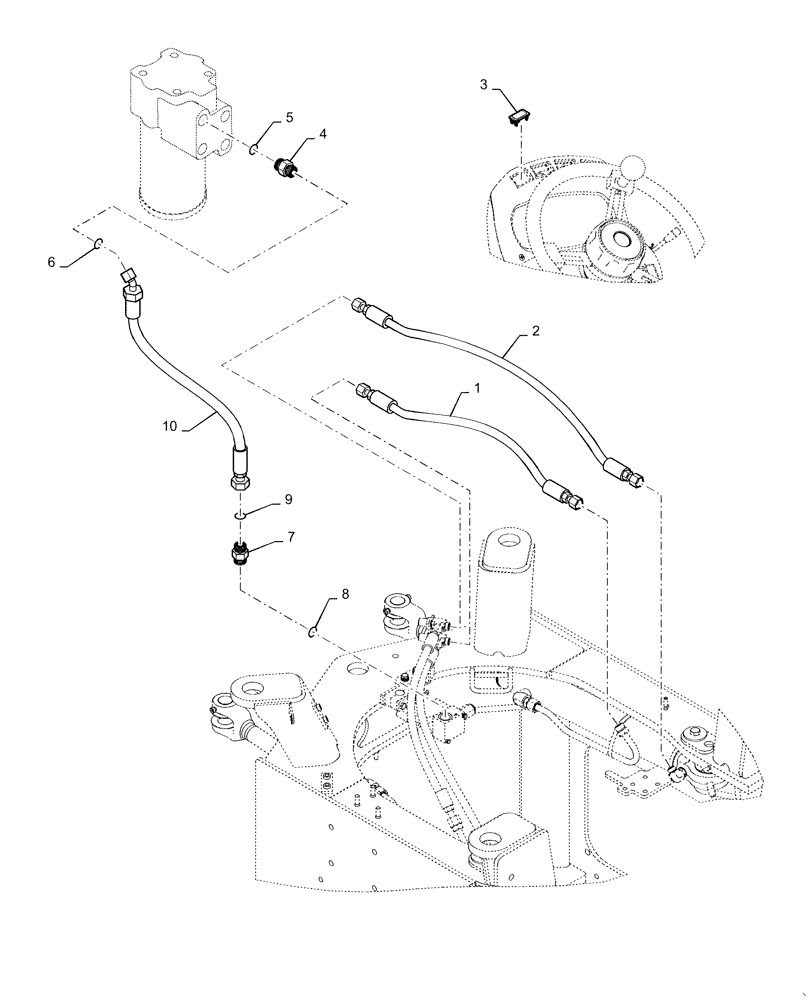

Схема запчастей Case 621F - (41.200.05) - STEERING NO JOYSTICK WITH AUX STEERING (41) - STEERING
3
5
2
7
10
9
4
8
1
6

Артикул

Название

Примечание

Количество

1

8602590

FLEXIBLE HOSE

RH Side Rod

1шт.

2

87519795

HOSE ASSY.

RH Side Base

1шт.

3

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole

1шт.

4

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 5 - 6

1шт.

5

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

6

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

7

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 8 - 9

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

87519793

HOSE ASSY.

Steering Return

1шт.

Выбрано товаров: 10
