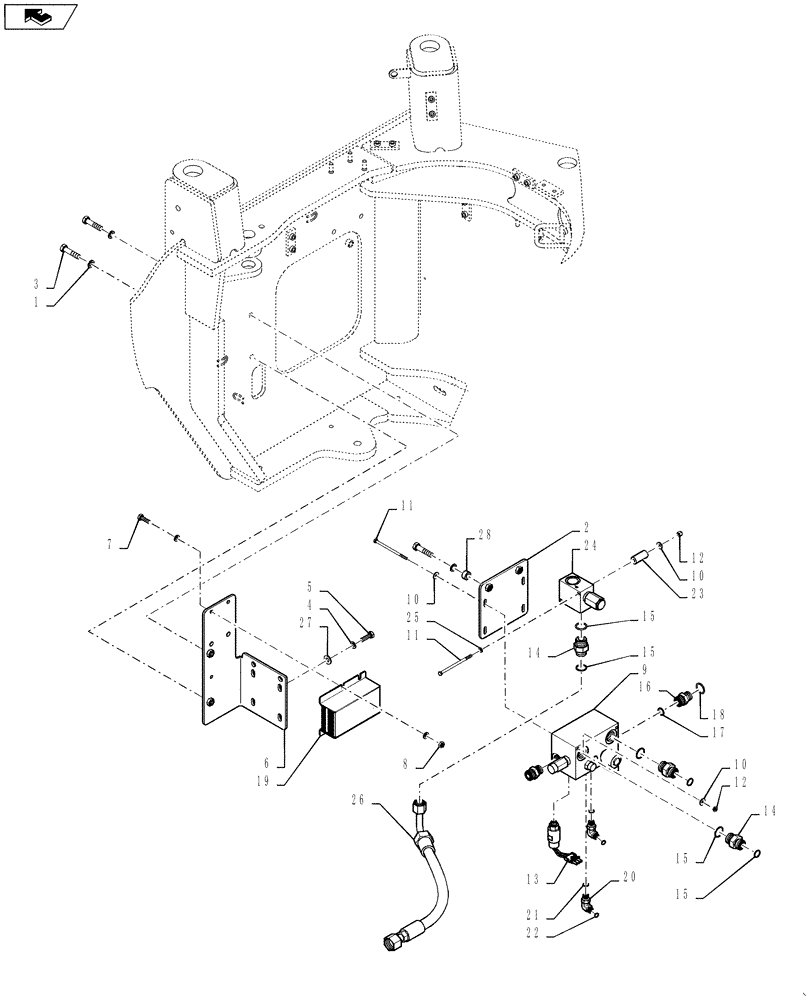

Запчасти Case 621F (41.200.02) - AUXILLARY STEERING PACKAGE (41) - STEERING

1

895-18012

WASHER,13.5mm ID x 20mm OD x 2mm Thk

4шт.

2

87653913

BRACKET

Aux Steering Valve CNH Black

1шт.

3

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

6

84393503

BRACKET, SUPPORTING

CNH Black

1шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

8

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

9

87609806

MANIFOLD

Aux Steering

1шт.

10

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

10шт.

11

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

6шт.

12

832-10406

NUT,M6 x 1, Cl 8

6шт.

13

398888A1

PRESSURE SWITCH

Aux Steering

1шт.

14

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 15

3шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

16

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 17 - 18

4шт.

17

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

18

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

19

8603171

MODULE

Secondary Steering

1шт.

20

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 21 - 22

2шт.

21

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

22

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

23

8500692

SPACER

2шт.

24

87427823

VALVE PRESSURE RELIE

1шт.

25

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

26

87653923

HOSE

1шт.

27

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

28

D44696

BUSHING

2шт.
