Запчасти Case 621F (41.200.00) - STEERING LINES PRESURE AND RETURN STANDARD (41) - STEERING

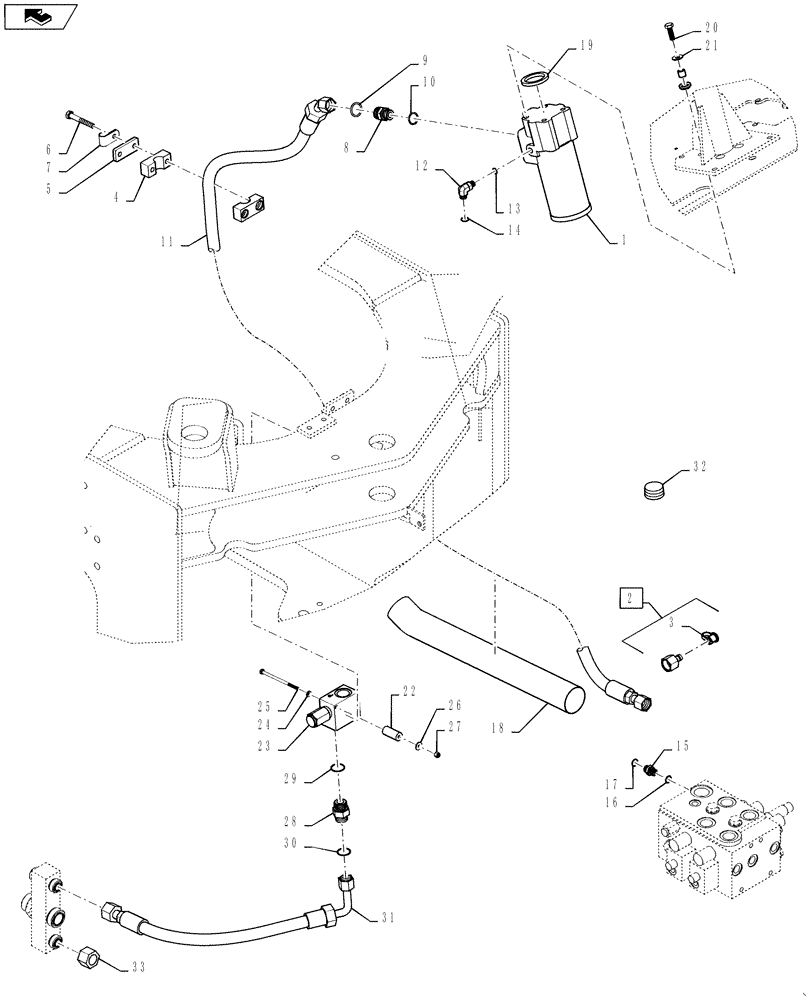

Схема запчастей Case 621F - (41.200.00) - STEERING LINES PRESURE AND RETURN STANDARD (41) - STEERING
25
2
9
19
27
14
6
12
23
24
26
22
16
10
30
3
31
4
18
20
8
28
15
21
17
13
home
1
11
33
29
32
5
7

Артикул

Название

Примечание

Количество

1

87307060

HYDRAULIC VALVE

Orbitrol 60 Cu

1шт.

2

324201A1

PLUG

Diagnostic Nipple, Incl 3

1шт.

3

H434163

DUST CAP

1шт.

4

367489A1

BLOCK

Tube Mounting

1шт.

5

367658A1

PLATE

Clamp

1шт.

6

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

7

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

8

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 9 - 10

1шт.

9

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

84402795

HOSE ASSY.,15.88mm ID x 1772mm L

Steering Presure

1шт.

12

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl 13 - 14

1шт.

13

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

14

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 16 - 17

1шт.

16

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

17

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

18

87559559

HOSE PROTECTION

1шт.

19

76043957

GASKET

1шт.

20

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

21

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

22

8500692

SPACER

2шт.

23

87427823

VALVE PRESSURE RELIE

1шт.

24

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

25

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

2шт.

26

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

27

832-10406

NUT,M6 x 1, Cl 8

2шт.

28

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

1шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

31

87653923

HOSE

Steering Return

1шт.

32

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

1шт.

33

701-907

CAP,1-3/16" - 12

1шт.

Выбрано товаров: 33
