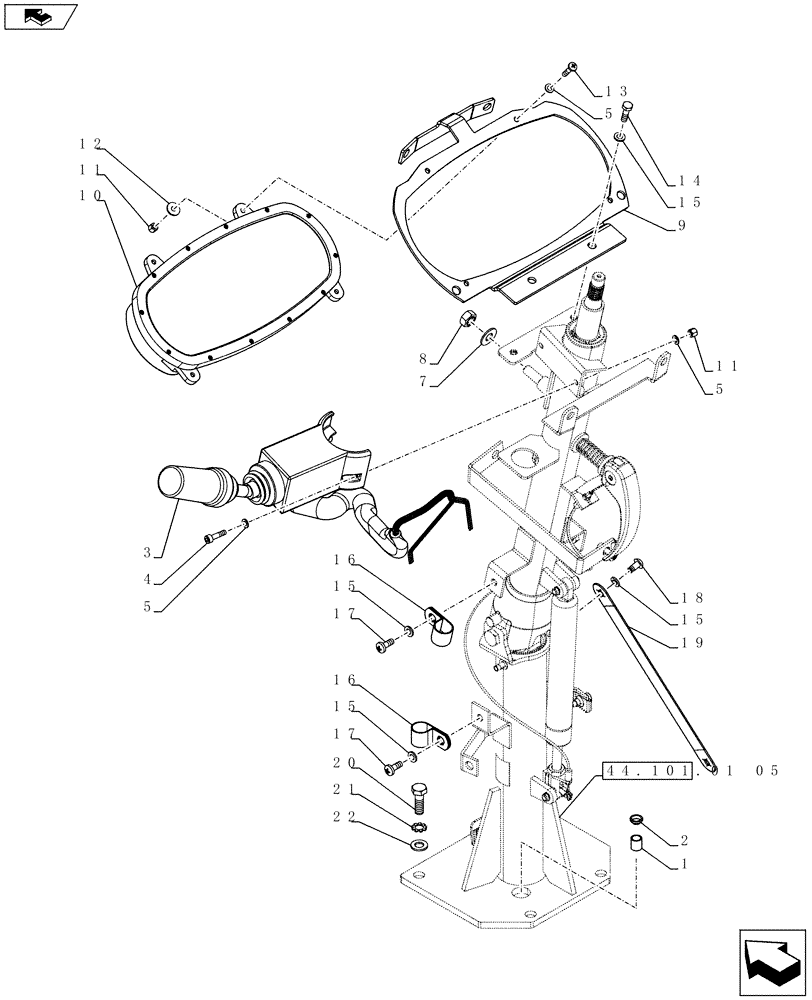

Запчасти Case 621F (41.101.01[02]) - CAB/CANOPY STEERING COLUMN, ACCESSORY (41) - STEERING

1

76081690

SPACER,10.3mm ID x 15mm OD x 14.8mm L

4шт.

2

71476260

SPACER,14.5mm ID x 19.5mm OD x 7mm L

8шт.

3

238270A1

CONTROL

Lever Shifter

1шт.

3

238270A1R

REMAN-JOYSTICK

1шт.

3

238270A1C

CORE-JOYSTICK

Return Number

1шт.

4

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

2шт.

5

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

8шт.

6

833-40306

SPRING NUT,M6, U

M6 Multi-Thread

4шт.

7

E134340

WASHER

Brass 10mm

1шт.

8

253347A1

NUT,Hex, M10 x 1.5

Brass

1шт.

9

76303295

BRACKET

AIC Mount

1шт.

10

84343051

INSTRUMENT CLUSTER

Cluster

1шт.

10

84343051R

REMAN-INSTR CLUSTER

1шт.

10

84343051C

CORE-CLUSTER, INSTR

Return Number

1шт.

11

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

6шт.

12

87013357

WASHER,5.5mm ID x 15mm OD x 1.6mm Thk

4шт.

13

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

4шт.

14

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

15

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

16

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

17

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

4шт.

18

261-2478

SELF-TAP SCREW,1/4 -20x1/2 F Pan

2шт.

19

349372A1

GROUND CABLE

1шт.

20

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

21

893-11010

LOCK WASHER,Ext Tooth, M10

4шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
