(39.100.12) - BATTERY COVER INSTALLATION, NO JUMP POSTS, NA

Запчасти Case 621F (39.100.12) - BATTERY COVER INSTALLATION, NO JUMP POSTS, NA (39) - FRAMES AND BALLASTING

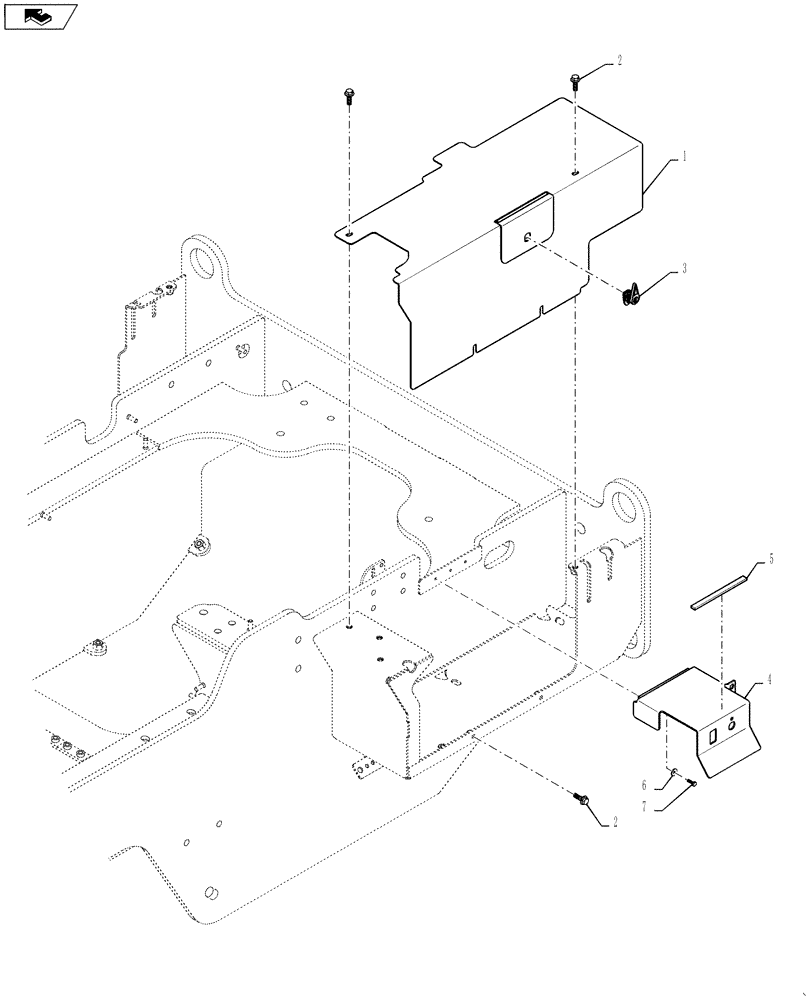

Схема запчастей Case 621F - (39.100.12) - BATTERY COVER INSTALLATION, NO JUMP POSTS, NA (39) - FRAMES AND BALLASTING
5
3
1
2
7
2
home
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84307985

COVER ASSY

LH

1шт.

2

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.

3

8602791

LOCK

Control Access

1шт.

4

84321318

BRACKET, SUPPORTING

1шт.

5

87591165

SEAL

1шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

7

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

Выбрано товаров: 7
