Запчасти Case 621F (39.100.10) - LIFT ARM INSTALLATION, XT/TC (39) - FRAMES AND BALLASTING

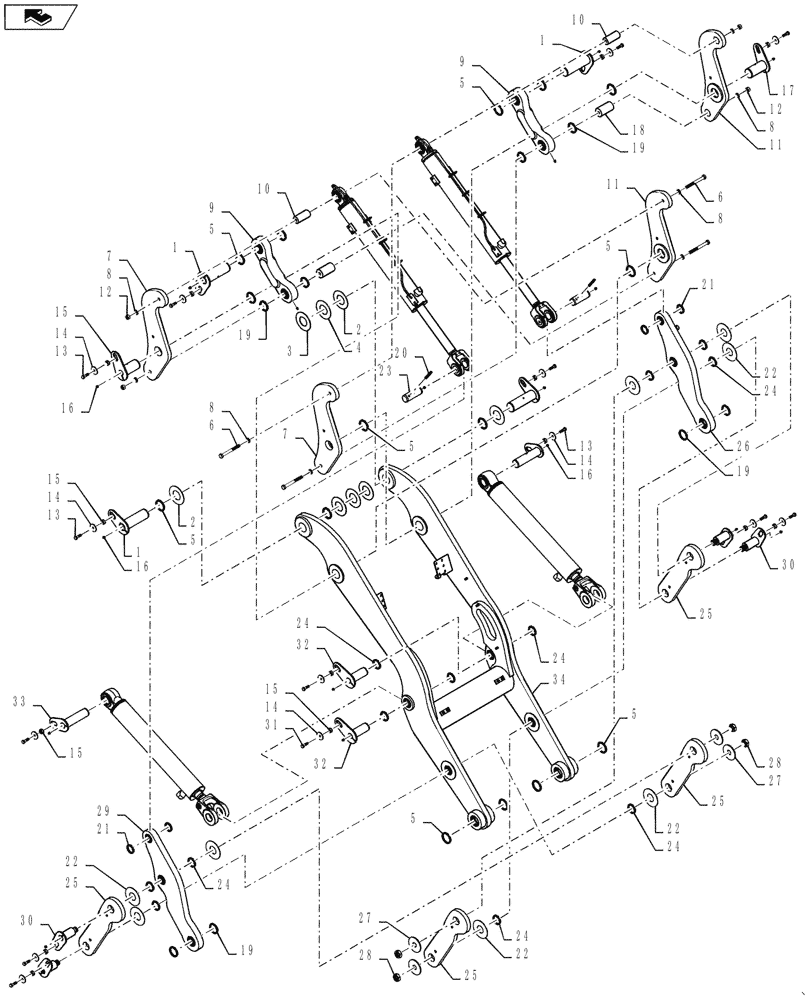

Схема запчастей Case 621F - (39.100.10) - LIFT ARM INSTALLATION, XT/TC (39) - FRAMES AND BALLASTING
23
24
24
15
6
24
16
24
11
33
8
1
12
10
14
2
28
15
23
18
7
1
14
32
20
15
11
8
21
19
25
17
8
7
7
30
19
8
5
22
19
34
16
5
28
13
4
32
5
5
15
22
9
27
14
13
2
5
22
5
16
7
6
1
12
9
22
29
31
27
25
25
19
13
30
10
14
24
21
26
5
3
24

Артикул

Название

Примечание

Количество

1

87397587

PIN ASSY.

Lift Arm Pivot

4шт.

2

375518A1

WASHER,77.6mm ID x 155mm OD x 3.5mm Thk

3.5 Thick

1шт.

3

441822A1

WASHER

1.6 Thick

1шт.

4

L127108

WASHER,77.5mm ID x 152mm OD x 2.5mm Thk

Lift Arm

1шт.

5

D95148

WIPER SEAL

76.2

16шт.

6

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

7

87344111

LINKAGE

Bellcrank, Right Hand

2шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

9

87445353

LINKAGE

Anchor

2шт.

10

368775A1

PIN

Cylinder Side

2шт.

11

87344104

LINKAGE

Bellcrank, Left Hand

2шт.

12

829-1420

NUT,M20, Cl 10

4шт.

13

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

14

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

14шт.

15

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

14шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

18шт.

17

379070A2

PIVOT PIN,76.2mm OD x 170.5mm L

Bell Crank Pivot

2шт.

18

8500311

PIN,69.85mm OD x 130.65mm L

Bellcrank, Anchor Side

2шт.

19

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

69.8

8шт.

20

38-33264

PIN,12.7mm OD x 101.6mm L, Coiled

2шт.

21

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

57.125

4шт.

22

116893A1

WASHER,65mm ID x 152mm OD x 3.5mm Thk

Hardened

8шт.

23

368836A2

PIN,57.15mm OD x 165mm L

Tilt Cylinder

2шт.

24

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

63.5

12шт.

25

87445354

LINKAGE

Guide

4шт.

26

87310653

LINK

Dump

1шт.

27

117025A1

WASHER,40mm ID x 127mm OD x 6.35mm Thk

Hardened

4шт.

28

131-53

NUT,1 1/2"-12

4шт.

29

87452370

LINKAGE

Link

1шт.

30

379197A2

PIN,63.5mm OD x 158.1mm L

Guide Link

4шт.

31

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

32

87397333

PIN,63.5mm OD x 177.5mm L

Lift Arm Pivot

2шт.

33

84315936

PIN

Lift Arm Pivot, Head

2шт.

34

87344091

ARM/LIFTING DEVICE

Lift

1шт.

Выбрано товаров: 34
