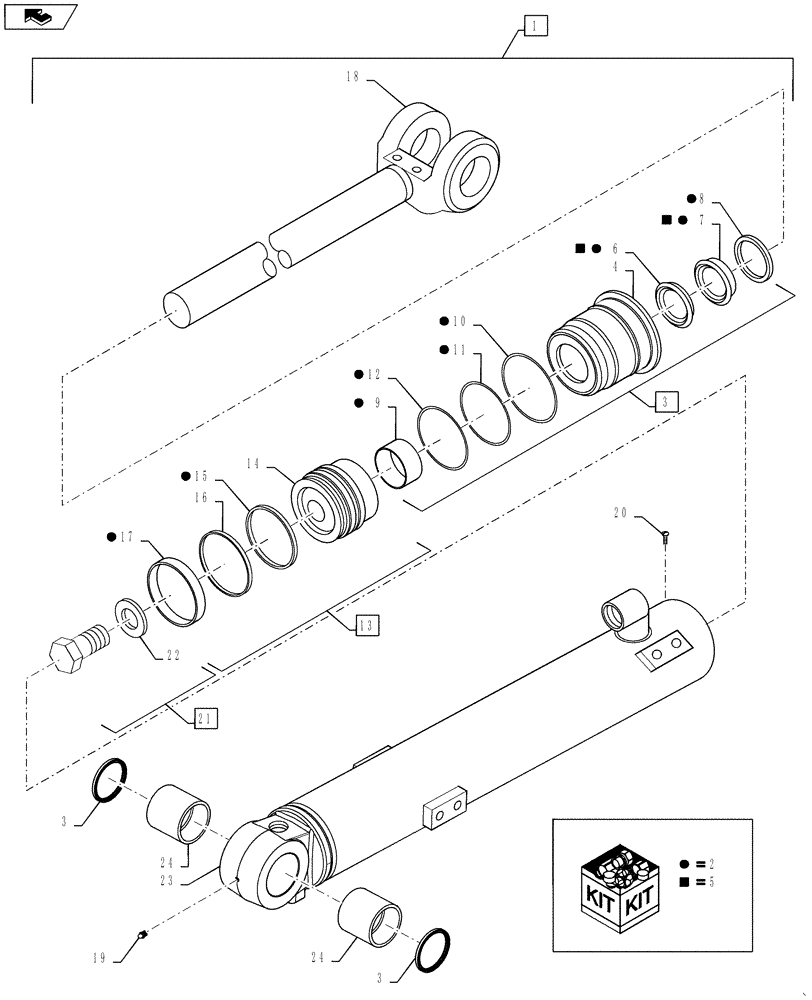

Запчасти Case 621F (39.100.10[03]) - TILT CYLINDER ASSEMBLY, XT/TC (39) - FRAMES AND BALLASTING

1

87442555

BUCKET CYLINDER,Double Acting, 63.5mm Rod, 819.9mm Stroke

XT Tilt; 114 ID x 819.9 mm strk; Incl. 1 - 24

2шт.

87442555R

REMAN-HYD CYLINDER

621F WHEEL LOADER - TIER 4 (NA) (1/12-)

2шт.

87442555C

CORE-HYD CYLINDER

Return Number

1шт.

2

360982A1

SEAL KIT

SEALS, XT Bucket Cylinder; Incl. Refs. 6 - 12, 15, 17

1шт.

3

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

2шт.

4

336379A1

GLAND

Cylinder; Incl. Refs. 4 - 12

1шт.

4

336378A1

GLAND

1шт.

5

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Incl. Refs 6-7

1шт.

6

Included in 5

1шт.

7

Included in 5

1шт.

8

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

9

336041A1

BUSHING

1шт.

10

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

11

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

Backup

1шт.

12

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

13

341971A1

PISTON

Incl. Refs. 14-17

1шт.

14

341968A1

PISTON

1шт.

15

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

SEALRING Loader

1шт.

16

336029A1

SEAL,115.75mm ID x 111.02mm OD x 6.96mm Thk

Piston

1шт.

17

336045A1

RING

Wear

1шт.

18

87442559

ROD ASSY.

63.5 mm dia

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

20

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

21

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. Ref. 22

1шт.

22

Included in 21

1шт.

23

87442557

TUBE,114.15 mm DIA x 1061.3 mm L

Incl. 2

1шт.

24

87625614

BUSHING,57.44mm ID x 69.95mm OD x 20mm L

2шт.
