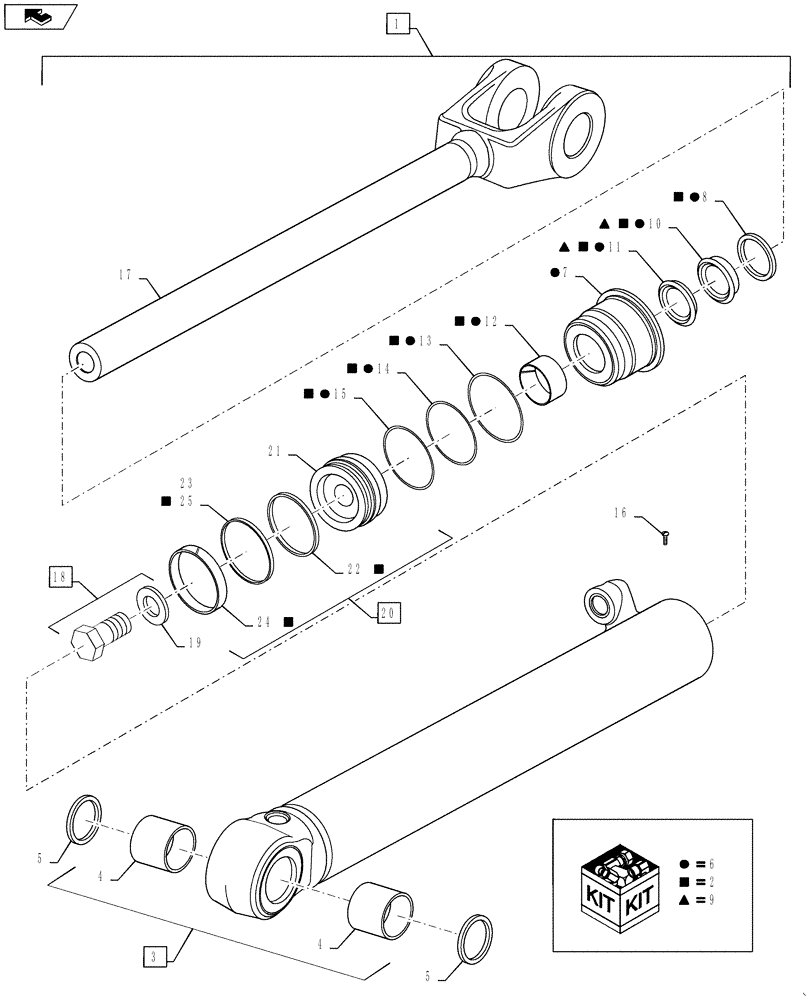

Запчасти Case 621F (39.100.08[02]) - CYLINDER ASSY -LIFT- LOADER Z BAR (39) - FRAMES AND BALLASTING

1

87577650

LIFT CYLINDER,Double Acting, 63.5mm Rod, 787.6mm Stroke

120.65 mm ID x 787.6 mm strk; Incl. Refs. 2-25

2шт.

87577650R

REMAN-HYD CYLINDER

621F - TIER 4 (NA) (1/12-)

2шт.

87577650C

CORE-HYD CYLINDER

Return Number

1шт.

2

87598751

SEAL KIT

Lift Cylinder; Incl. Refs. 8-15 22,24,25

1шт.

3

87586627

TUBE,120.6 mm ID x 1029.2 mm L

Incl. Ref. 4

1шт.

4

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

2шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

2шт.

6

84362464

PISTON ROD/GLAND

GLAND ASSY. Cylinder; Incl. Refs. 7-15

1шт.

7

87586628

GLAND

1шт.

8

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

9

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Seal; Incl. Refs. 10,11

1шт.

10

Seal, Rod Must Order # 9

1шт.

11

Seal, Buffer Must Order # 9

1шт.

12

336041A1

BUSHING

Rod

1шт.

13

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

14

446178A1

SEALING RING,110.41mm ID x 116.35mm OD x 1.09mm Thk

Backup

1шт.

15

238-5245

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

1шт.

16

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

17

87318062

PISTON ROD,63.5mm OD x 1085.7mm L

63.5 Diameter

1шт.

18

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. Ref. 19

1шт.

19

Washer Must Order # 18

1шт.

20

87586631

PISTON ASSY

PISTON ASSY. Incl. Refs. 21-24, Order Component Parts Separately

1шт.

21

87586630

PISTON ROD/GLAND

120.7 x 63.5

1шт.

22

87403649

SEALING RING,Square, 5.28mm Thk x 107.06mm ID

Loader; 4.75 Bore

1шт.

23

446481A1

SEAL,117.2mm ID x 122.15mm OD x 6.96mm Thk

Piston

1шт.

24

446195A1

SEALING RING,Split, 114.27mm ID x 120.62mm OD x 19.05mm Thk

Wear Ring

1шт.

25

446481A1

SEAL,117.2mm ID x 122.15mm OD x 6.96mm Thk

1шт.
