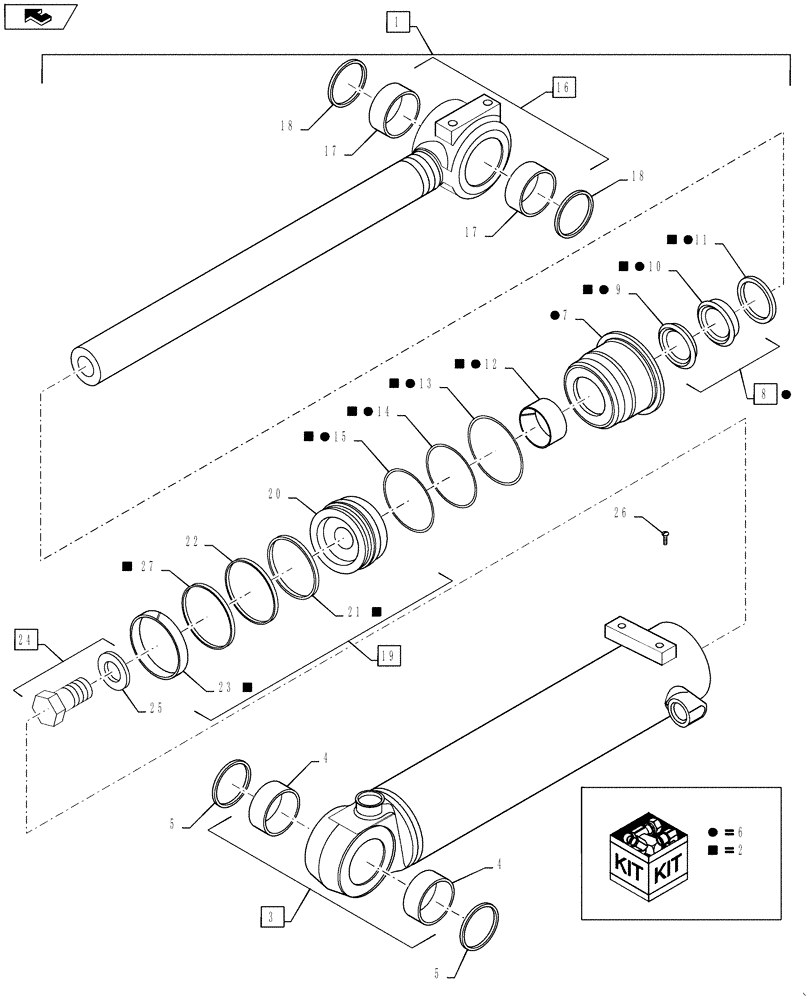

Запчасти Case 621F (39.100.08[01]) - CYLINDER ASSY -TILT LOADER BUCKET (Z BAR LOADER) (39) - FRAMES AND BALLASTING

1

87366689

CYLINDER ASSY.,Double Acting, 76.2mm Rod, 619.7mm Stroke

Z-Bar Tilt; 114 ID x 529 mm strk; Bucket; Incl. Refs. 1 - 27

1шт.

87366689R

REMAN-HYD CYLINDER

W130C TIER 2 (INT) , 621F TIER 4 both ( 1/12 - )

1шт.

87366689C

CORE-HYD CYLINDER

Return Number

1шт.

2

87434293

SEAL KIT

Incl. Refs. 9-15 21,23,27

1шт.

3

339525A1

BARREL,127mm Bore Dia

Incl. Ref. 4

1шт.

4

87625613

BUSHING,70.14mm ID x 82.65mm OD x 36mm L

2шт.

5

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

2шт.

6

339512A1

GLAND

Assembly; Incl. Refs. 7-15

1шт.

7

339511A1

GLAND

Packing

1шт.

8

1542881C1

SEAL KIT

Incl. Refs. 9,10

1шт.

9

SEAL, ROD Must Order # 8

1шт.

10

SEAL, BUFFER Must Order # 8

1шт.

11

D95148

WIPER SEAL

1шт.

12

336042A1

BUSHING

Bearing; Dia. 76.20

1шт.

13

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

1шт.

14

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

15

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

16

339520A1

ROD ASSY.

76.2 Dia; Incl. Ref. 17

1шт.

17

87625613

BUSHING,70.14mm ID x 82.65mm OD x 36mm L

2шт.

18

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

2шт.

19

339510A1

PISTON

Incl. Refs. 20-23

1шт.

20

339508A1

PISTON,126.33mm Bore, 76.31mm Rod, 72.4mm W

127.0 Dia Cylinder; 76.2 Dia Rod

1шт.

21

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

Loader, 127.0 Dia.

1шт.

22

336030A1

SEAL,123.8mm ID x 128.52mm OD x 6.96mm Thk

Piston, 127.0 Dia.

1шт.

23

336046A1

RING

Wear

1шт.

24

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. Ref. 25

1шт.

25

Washer Must Order # 24

1шт.

26

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

27

1986753C1

SEAL,Locking, 123.8mm ID x 128.52mm OD x 6.96mm Thk

Expandable

1шт.
