(39.100.07) - BATTERY AND SCR COVERS

Запчасти Case 621F (39.100.07) - BATTERY AND SCR COVERS (39) - FRAMES AND BALLASTING

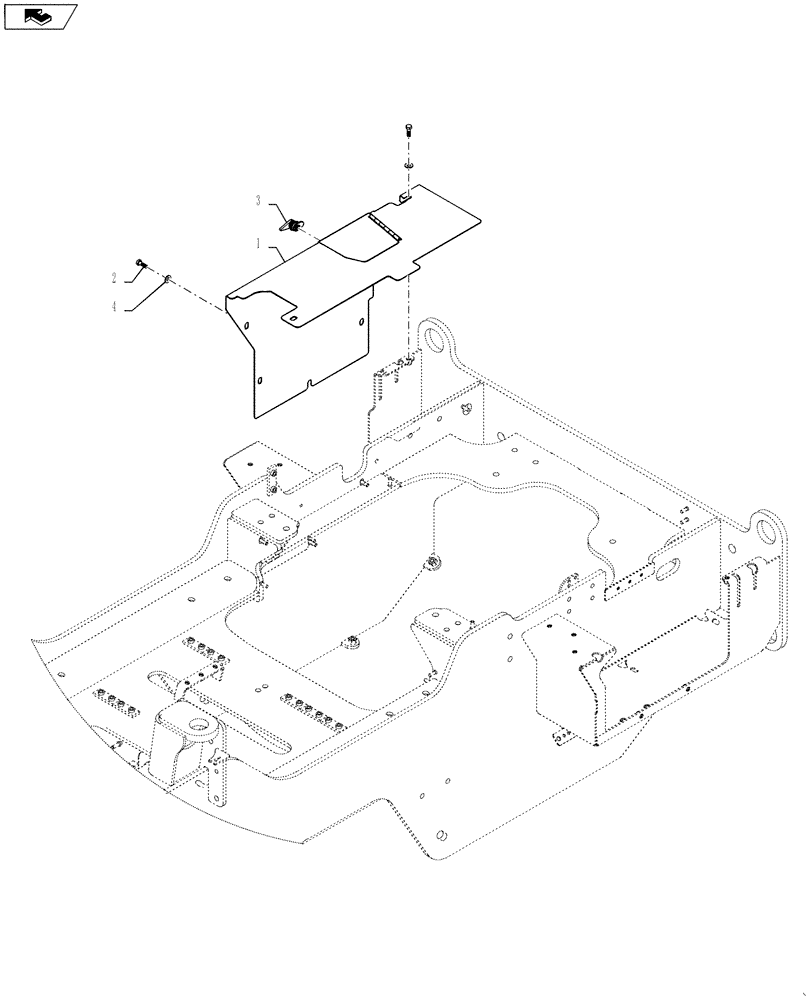

Схема запчастей Case 621F - (39.100.07) - BATTERY AND SCR COVERS (39) - FRAMES AND BALLASTING
2
3
1
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84364937

MOUNT

Right Hand SCR/ NA Only

1шт.

1

84374004

COVER

Right Hand SCR/ EU Only

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

6шт.

3

8602791

LOCK

Control Access

1шт.

4

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

EU Only

6шт.

Выбрано товаров: 5
