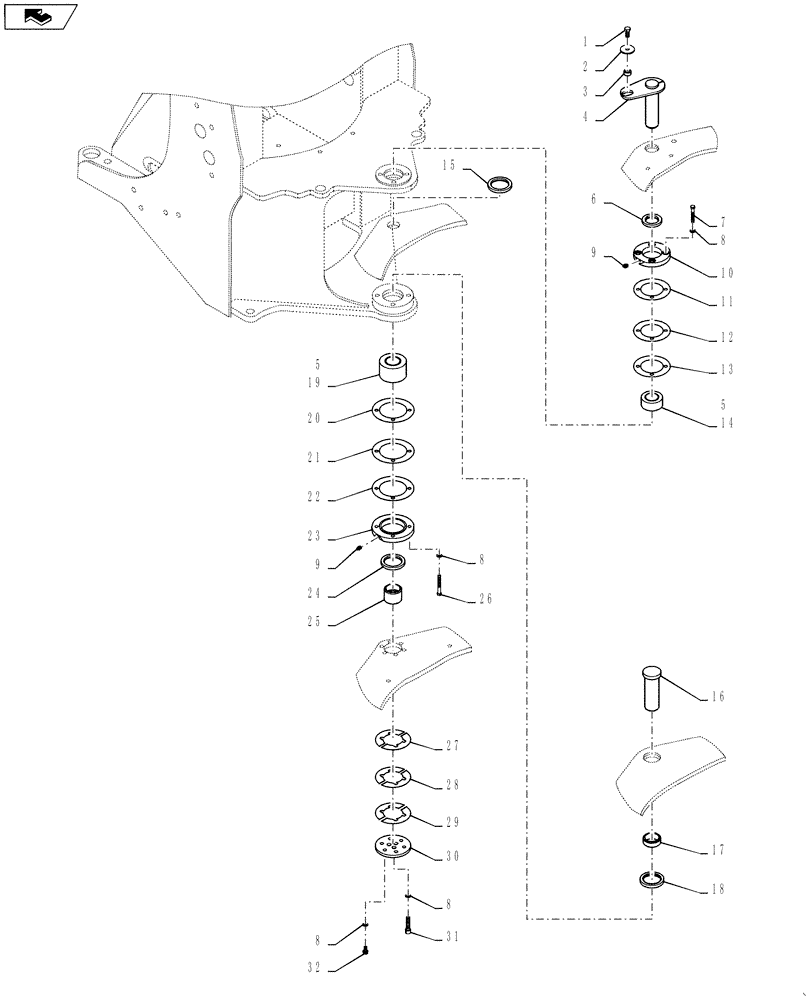

Запчасти Case 621F (39.100.04) - ARTICULATION JOINT (39) - FRAMES AND BALLASTING

1

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

2

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

1шт.

3

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

1шт.

4

8606124

PIN,57.14mm OD x 170mm L

1шт.

5

331-329

GREASE

1 Ounce Wheel Bearing Grease

1шт.

6

391281A1

SEAL

1шт.

7

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

10

391280A1

RETAINER

1шт.

11

L118987

SHIM,0.1mm Thk

(.004") Upper pivot

1шт.

12

L119202

SHIM,0.25mm Thk

(.010") Upper pivot

1шт.

13

L118986

SHIM,0.5mm Thk

(.020") Upper pivot

1шт.

14

391276A1

TAPERED BEARING,57.15mm ID x 96.84mm OD x 42.59mm W

1шт.

15

391278A1

SEAL

1шт.

16

84339264

PIN

Pin Lower

1шт.

17

87623437

SPACER,63.55mm ID x 79.4mm OD x 29.5mm L

Lower Bearing

1шт.

18

L118978

SEAL,79.38mm ID x 108.05mm OD x 12.7mm Thk

1шт.

19

432765A1

TAPERED BEARING,63.5mm ID x 122.24mm OD x 76.61mm W

1шт.

20

L118990

SHIM,124mm ID x 190mm OD x 0.11mm Thk

(.004") Lower pivot

1шт.

21

L118989

SHIM,124mm ID x 190mm OD x 0.54mm Thk

(.020") Lower pivot

1шт.

22

L119203

SHIM,124mm ID x 190mm OD x 0.28mm Thk

.25 mm

1шт.

23

432909A1

RETAINER

1шт.

24

L126168

SEAL,79.38mm ID x 108.05mm OD x 11.89mm Thk

1шт.

25

87623438

SPACER,63.54mm ID x 79.4mm OD x 58.64mm L

Lower Bearing

1шт.

26

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

27

L118983

SHIM,90mm ID x 160mm OD x 0.11mm Thk

1шт.

28

L118980

SHIM,90mm ID x 160mm OD x 0.28mm Thk

1шт.

29

L118982

SHIM,90mm ID x 160mm OD x 0.54mm Thk

1шт.

30

84339265

PLATE

Lower Pin

1шт.

31

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

3шт.

32

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.
