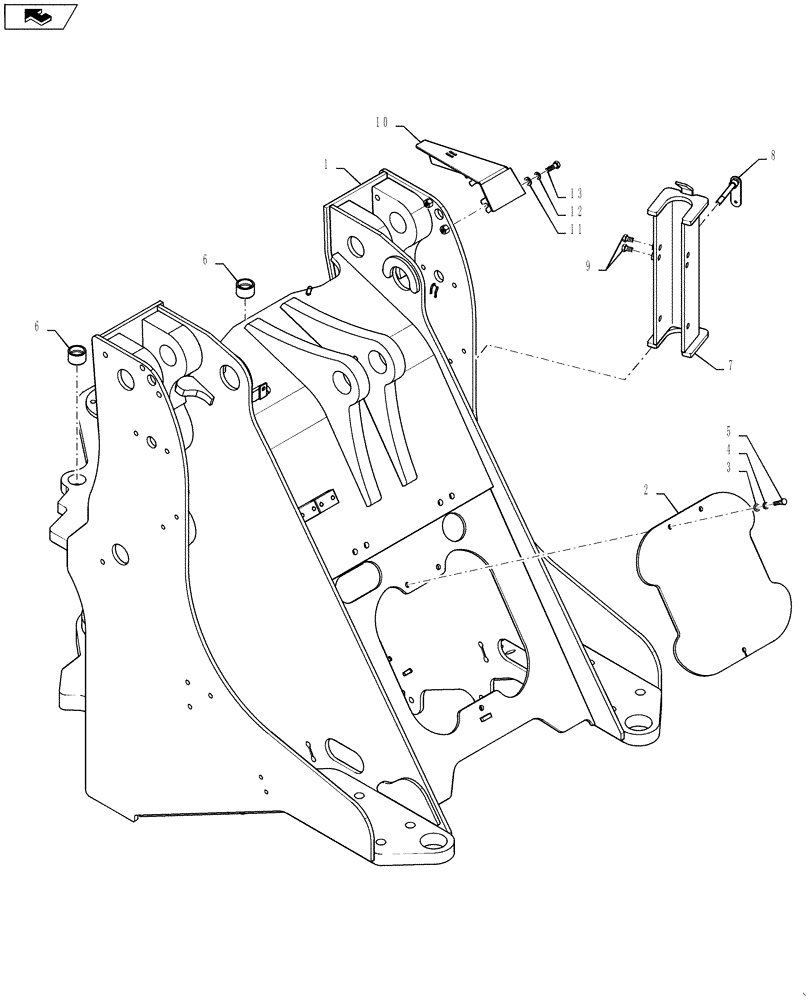

Запчасти Case 621F (39.100.01) - FRAME, FRONT (Z-BAR, XR) (39) - FRAMES AND BALLASTING

1

84382812

FRAME

Front Chassis; Case Power Tan

1шт.

2

8605898

COVER

Valve

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

6

8500173

BUSHING,40.22mm ID x 49.87mm OD x 32mm L

2шт.

7

406347A1

SUPPORT ASSY.

Linkage

1шт.

8

406390A1

HANDLE

Linkage Channel

1шт.

9

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

1шт.

10

87430084

COVER

Proximity Switch

1шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

12

892-11012

LOCK WASHER,M12

2шт.

13

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.
