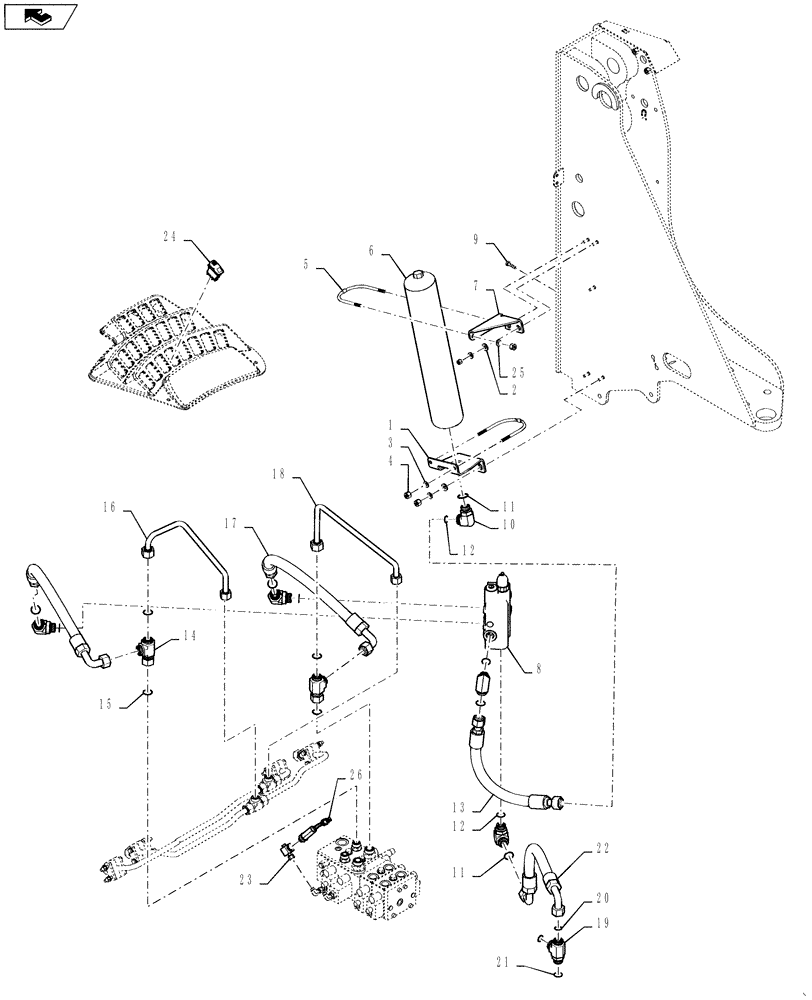

Запчасти Case 621F (35.962.01) - RIDE CONTROL INSTALLATION (35) - HYDRAULIC SYSTEMS

1

87393646

BRACKET

Ride Control Accumulator

1шт.

2

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

3

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

5

87492028

U-BOLT

Coined

2шт.

6

87393434

ACCUMULATOR,3.8L

Ride Control

1шт.

7

87403347

BRACKET

Ride Control Accumulator, Top

1шт.

8

87393431

VALVE

Ride Control; See Fig. 35.962.01 (01)

1шт.

9

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

10

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Also Order 11-12

5шт.

11

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

12

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

13

87452278

HOSE ASSY.

Ride Control Accumulator; 588 mm (23 - 1/8 in)

1шт.

14

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Also Order 15

2шт.

15

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

3шт.

16

87389423

HYD TUBE,19.4 mm ID x 25.40 mm OD x 253, 105 mm L

Ride Control, Head

1шт.

17

87452280

HOSE ASSY.

Head Or Rod; 873mm (34-3/8 in)

2шт.

18

87452287

TUBE,25.4 mm OD x 298.1, 243.8 mm L

Ride Control, Rod

1шт.

19

700-407

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Also Order 20-21

1шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

2шт.

21

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

22

87452279

HOSE ASSY.

Ride Control Tank; 723 mm (28 - 15/32 in)

1шт.

23

397547A1

FITTING

Pressure Switch T/C Only

1шт.

24

87350055

SWITCH

Ride Control

1шт.

25

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

26

446183A1

PRESSURE SWITCH

Switch Rollback T/C Only

1шт.
