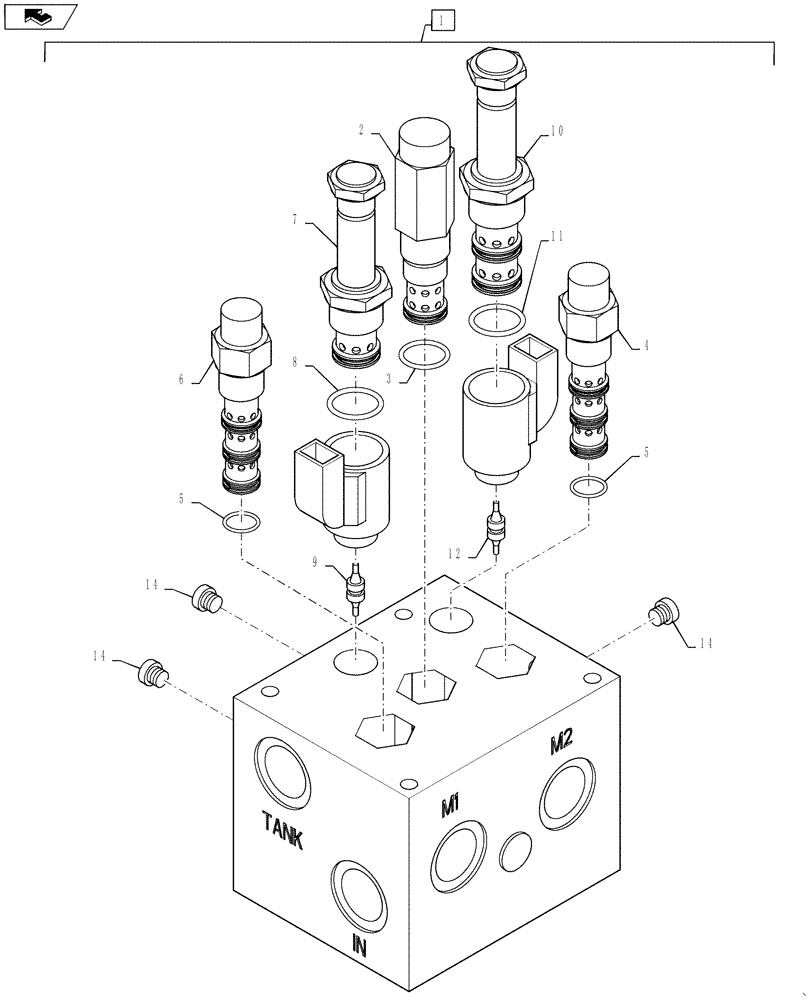

Запчасти Case 621F (35.752.04) - FAN SPEED AND REVERSER VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

8500565

HYDRAULIC VALVE

Fan Speed and Reverser; Incl. Refs. 1-12

1шт.

2

8605053

VALVE PRESSURE RELIE

Incl. Ref. 2

1шт.

3

1542833C1

SEAL KIT

1шт.

4

8605056

PILOT VALVE

Directional; Incl. Ref. 4

1шт.

5

388744A1

SEAL KIT

Seal; Includes (4) O-Rings and (6) Back-Up Rings

2шт.

6

8605059

PILOT VALVE

Directional; Incl. Ref. 4

1шт.

7

8605062

SOLENOID VALVE

EF Pilot Operated Relief; Incl. Ref. 7

1шт.

8

1542830C2

SEAL KIT

1шт.

9

87617169

COIL

Electronic

1шт.

10

8605066

VALVE PRESSURE RELIE

Solenoid Cartridge; Incl. Ref. 13

1шт.

11

87617168

SEAL KIT

Includes (3) O-Rings and (4) Back-Up Rings

1шт.

12

87617170

COIL

Electronic

1шт.

13

329483A1

SEAL KIT

Not Illustrated

1шт.

14

218-5209

PLUG,Hex, 9/16"-18 ORB

9шт.
