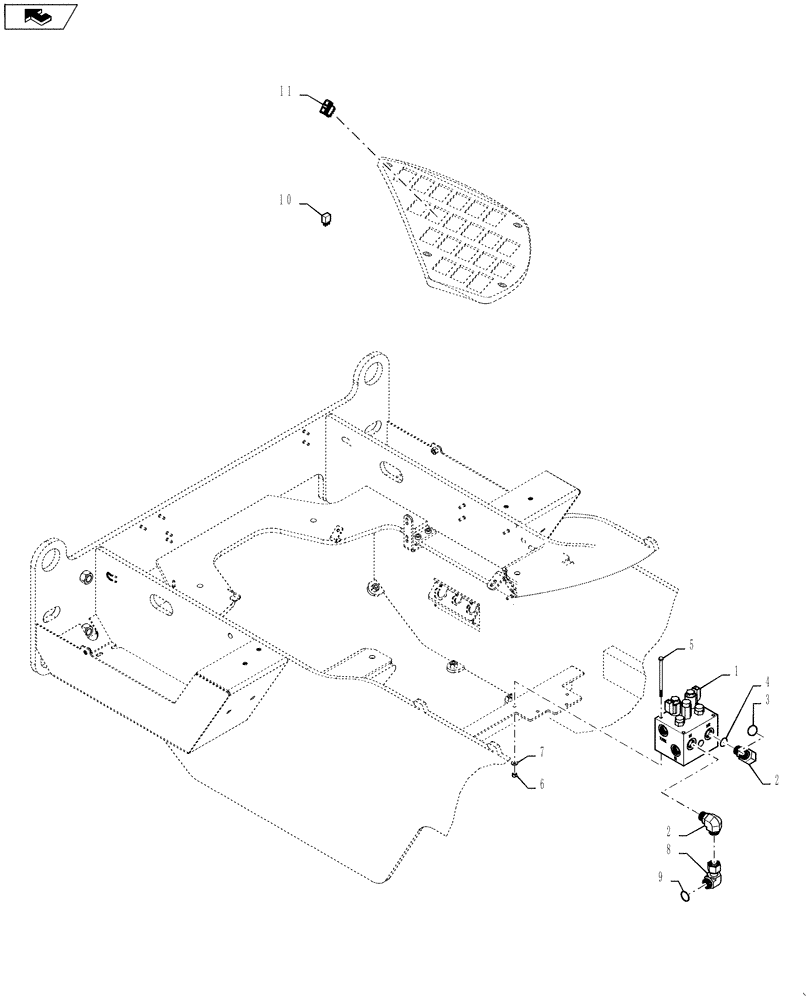

Запчасти Case 621F (35.752.02) - FAN RELIEF VALVE WITH VARIABLE SPEED AND REVERSING INSTALLATION (35) - HYDRAULIC SYSTEMS

1

8500565

HYDRAULIC VALVE

Fan Speed and Reverser; See Fig. 35.752.04

1шт.

2

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Also Order 3-4

2шт.

3

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

5

814-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

3шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

8

701-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Also Order 9

1шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

10

87312626

RELAY,24V

5-Pin

1шт.

11

87350049

SWITCH

Fan Reverser

1шт.
