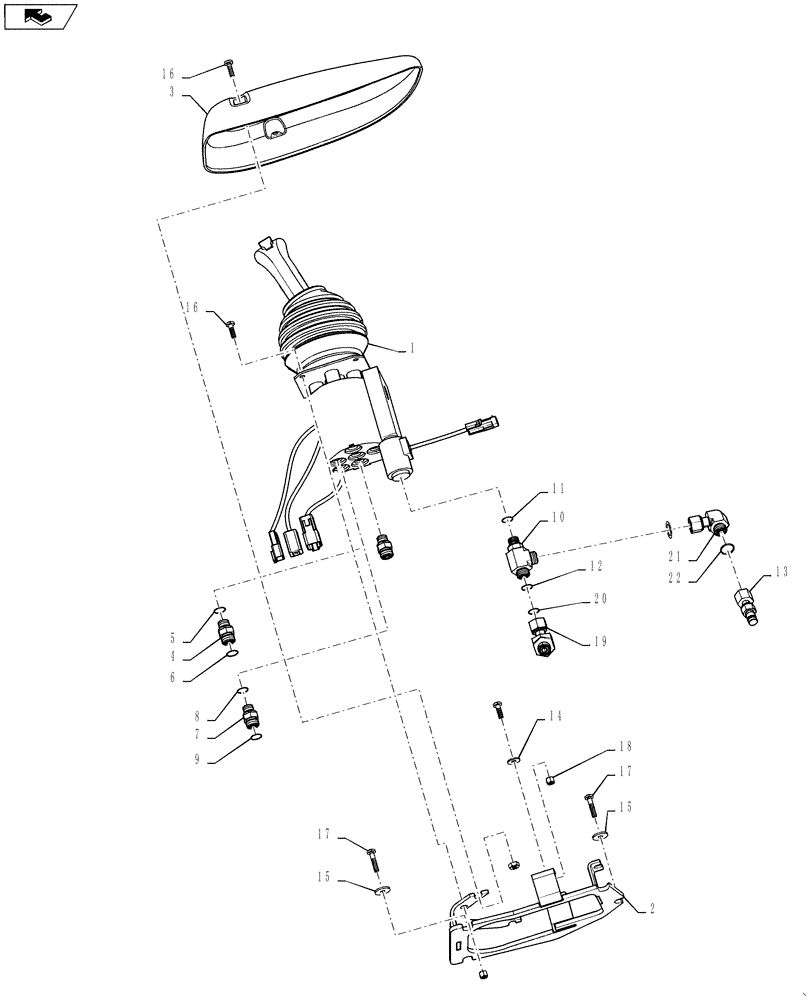

Запчасти Case 621F (35.357.06) - JOYSTICK WITH SINGLE LEVER CONTROL INSTALLATION (35) - HYDRAULIC SYSTEMS

1

87340017

JOYSTICK

With One Lever;

1шт.

2

87516506

ADAPTER

Joystick Controller

1шт.

3

87638911

BEZEL

1шт.

4

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Also Order 5-6

6шт.

5

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

6

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Also Order 8-9

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

9

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

10

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Also Order 11-12

1шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

12

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

13

190119A1

COUPLING

Diagnostic

1шт.

14

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

15

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

4шт.

16

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

7шт.

17

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

4шт.

18

832-10406

NUT,M6 x 1, Cl 8

2шт.

19

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Also Order 20

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

21

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Also Order 22

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
