(35.357.06[01]) - VALVE ASSEMBLY, JOYSTICK WITH SINGLE LEVER

Запчасти Case 621F (35.357.06[01]) - VALVE ASSEMBLY, JOYSTICK WITH SINGLE LEVER (35) - HYDRAULIC SYSTEMS

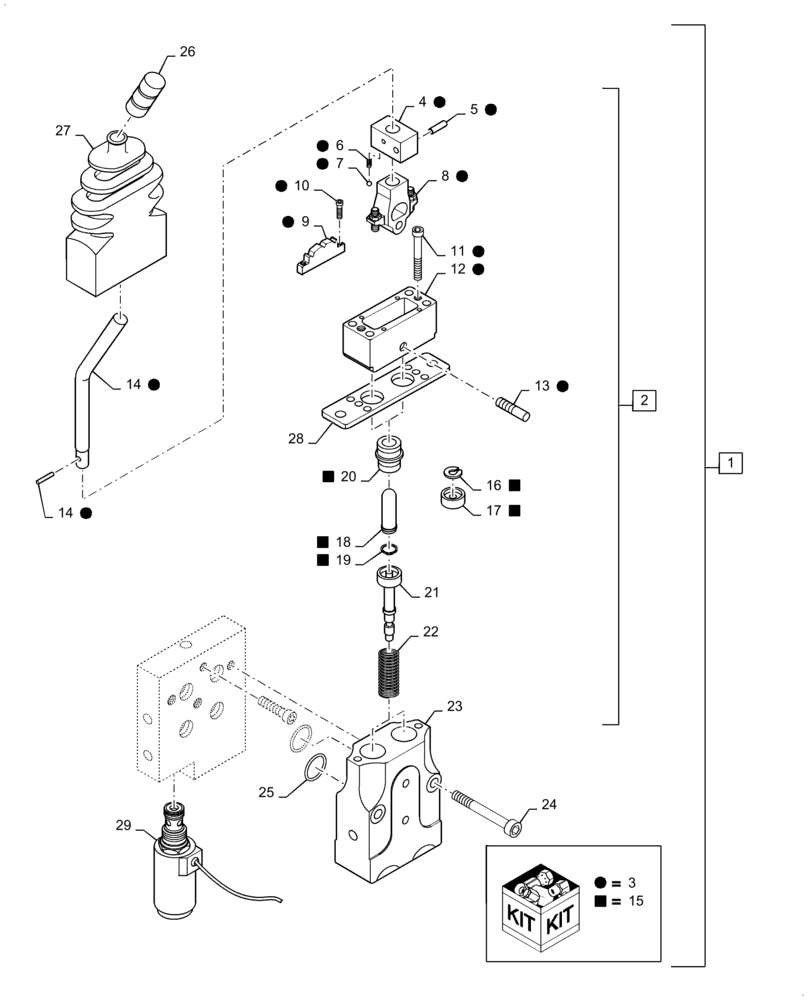

Схема запчастей Case 621F - (35.357.06[01]) - VALVE ASSEMBLY, JOYSTICK WITH SINGLE LEVER (35) - HYDRAULIC SYSTEMS
8
17
3
3
15
15
27
4
20
1
14
16
25
3
3
6
29
3
15
2
9
13
3
3
12
7
18
15
24
26
5
11
3
10
3
15
15
23
21
3
14
3
3
19
28
15
3
22
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87340017

JOYSTICK

Valve Assembly; With Single Lever; Incl. Refs. 1 - 28, Incl. Figures 55.524.01 (01,02)

1шт.

2

8604593

LEVER ASSY & KNOB

Assembly Valve; Incl. Refs. 1 - 22

1шт.

3

8604546

KIT

M Operation; Incl. Refs. 4 - 14

1шт.

4

Included with 3

1шт.

5

Included with 3

1шт.

6

Included with 3

1шт.

7

Included with 3

1шт.

8

Included with 3

1шт.

9

Included with 3

1шт.

10

Included with 3

2шт.

11

Included with 3

2шт.

12

Included with 3

1шт.

13

Included with 3

1шт.

14

Included with 3

1шт.

15

8604255

REPAIR KIT

Plunger; Incl. Refs. 16 - 20

2шт.

16

Included with 15

1шт.

17

Included with 15

1шт.

18

Included with 15

1шт.

19

Included with 15

1шт.

20

Included with 15

1шт.

21

8604548

REGULATOR

Unit

2шт.

22

8604549

KIT

Return; Set Of Two

1шт.

23

Included with 1

1шт.

24

864-8045

HEX SOC SCREW,M8 x 45mm, Cl 8.8

2шт.

25

8604547

REPAIR KIT

1шт.

26

8604543

GRIP

1шт.

27

8604544

BOOT

Rubber

1шт.

28

8604545

RETAINING PLATE

Retaining

1шт.

29

8604542

SOLENOID VALVE,Joystick Control, 24v

1шт.
