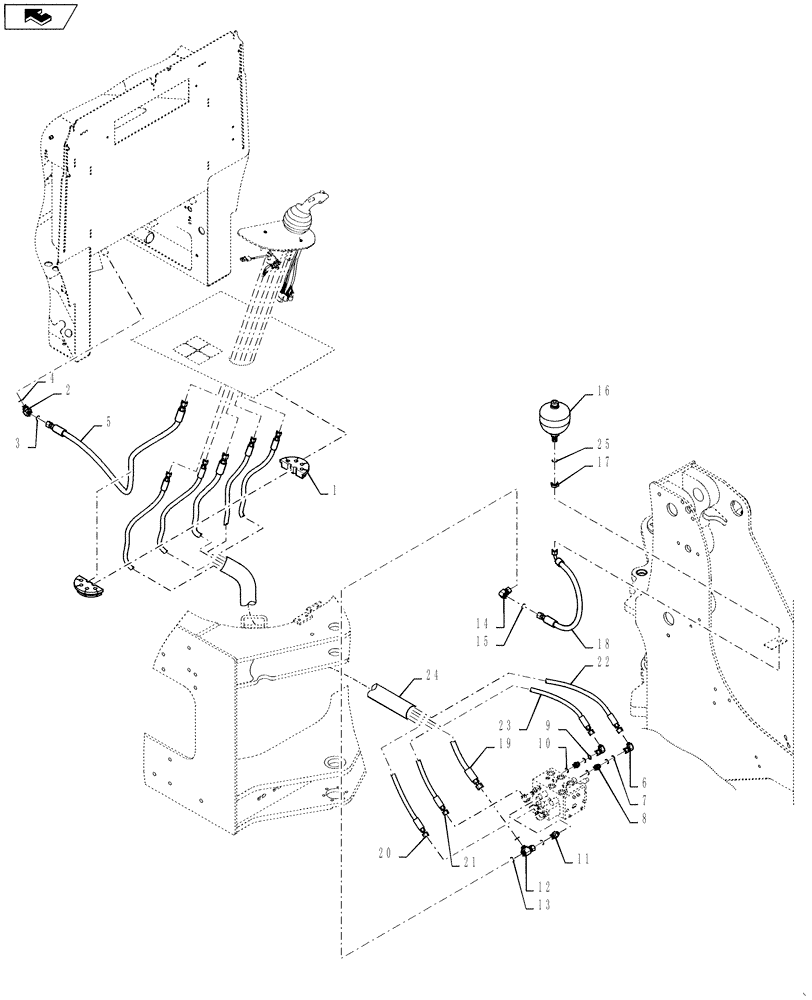

Запчасти Case 621F (35.357.03) - 2 SPOOL LINE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

380912A1

GROMMET

Hose Mounting

2шт.

2

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 3 - 4

1шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

4

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

5

392059A1

HOSE ASSY.

Pilot Tank

1шт.

6

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 7

2шт.

7

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

8

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 9 - 10

2шт.

9

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

10

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

11

391859A1

VALVE, CHECK

1шт.

12

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 13

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 15

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

8501047

ACCUMULATOR

Pilot Supply

1шт.

17

701-909

NUT,11/16" - 16

1шт.

18

87308338

HOSE ASSY.

Pilot Accumulator

1шт.

19

87651218

HOSE

Pilot Pressure

1шт.

20

87651219

HOSE

Pilot Lift RH

1шт.

21

87651220

HOSE

Pilot Tilt RH

1шт.

22

87651221

HOSE

Pilot Lift LH

1шт.

23

87651222

HOSE

Pilot Tilt LH

1шт.

24

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

Sleeve

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
