(35.357.02[03]) - VALVE ASSEMBLY, LOADER CONTROL THIRD AND FOURTH SPOOL, VALVE SECTION, XT/TC

Запчасти Case 621F (35.357.02[03]) - VALVE ASSEMBLY, LOADER CONTROL THIRD AND FOURTH SPOOL, VALVE SECTION, XT/TC (35) - HYDRAULIC SYSTEMS

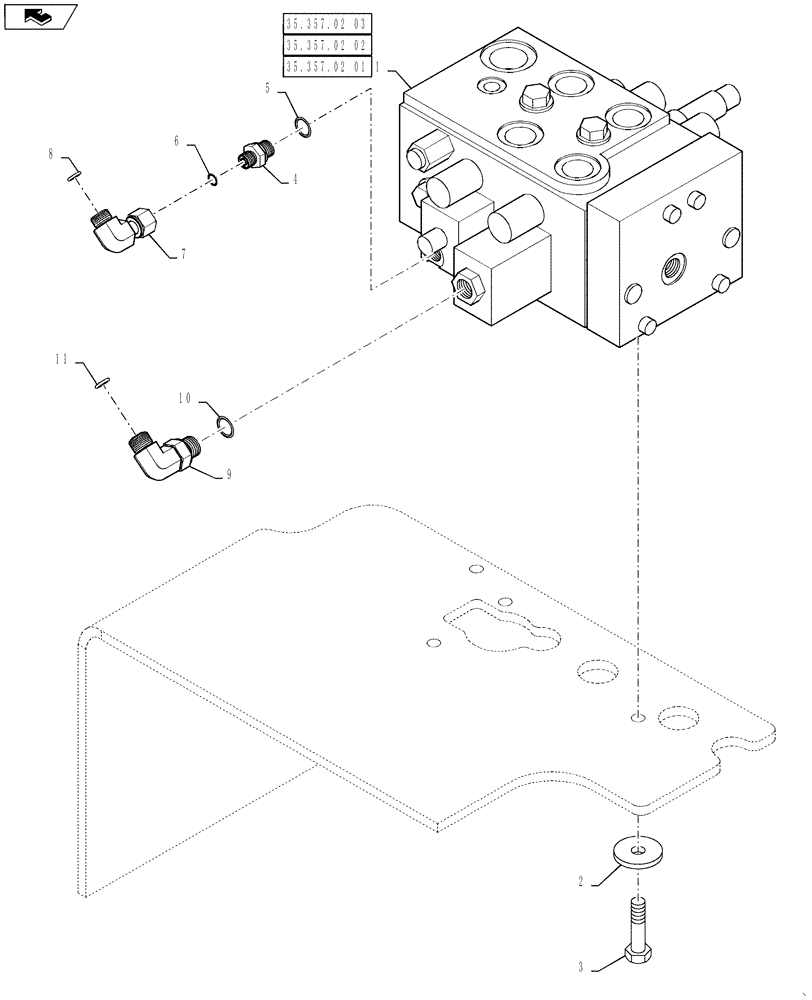

Схема запчастей Case 621F - (35.357.02[03]) - VALVE ASSEMBLY, LOADER CONTROL THIRD AND FOURTH SPOOL, VALVE SECTION, XT/TC (35) - HYDRAULIC SYSTEMS
35.357.02 03
1
10
9
5
home
8
2
11
6
7
35.357.02 01
4
3
35.357.02 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8604567

VALVE, CHECK

1шт.

2

8604566

SEAL KIT

Available in Kit Only

1шт.

3

864-5055

HEX SOC SCREW,M5 x 55mm, Cl 8.8

M5 X 55; 8.8

4шт.

4

8604578

CHECK VALVE

2шт.

5

8604579

VALVE

1шт.

6

8604580

SPRING

Compression

1шт.

7

8604781

VALVE

Throttle Check

1шт.

8

8604582

RETAINER

Spring

1шт.

9

8604583

SPRING

Compression

2шт.

10

87311984

RETAINER

Retainer

1шт.

11

87692671

SPOOL

1шт.

Выбрано товаров: 11
