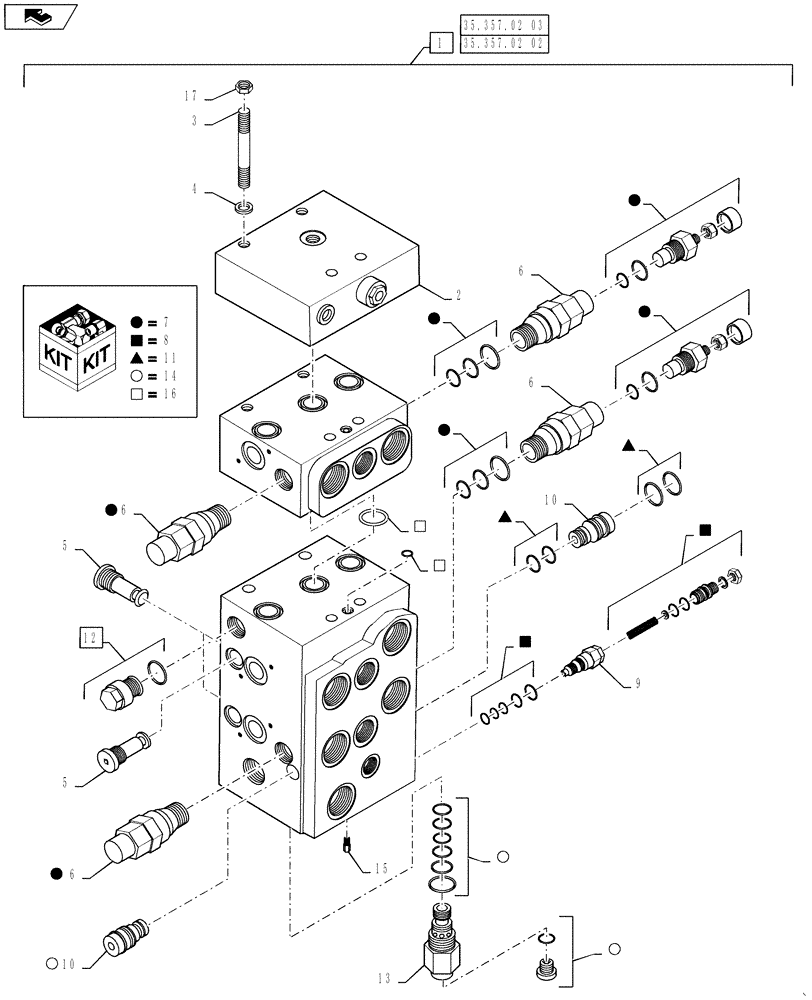

Запчасти Case 621F (35.357.02[01]) - VALVE ASSEMBLY, LOADER CONTROL, 2, 3, 4 SPOOL, XT/TC (35) - HYDRAULIC SYSTEMS

1

87680515

HYDRAULIC VALVE

Two Spool, Incl 2-17 and Fig 35.357.02 (02)

1шт.

1

87680516

HYDRAULIC VALVE

Three Spool, Incl 2-17 and Fig 35.357.02 (02) (03)

1шт.

1

87680517

HYDRAULIC VALVE

Four Spool, Incl 2-17 and Fig 35.357.02 (02) (03)

1шт.

2

87311889

PLATE

Valve

1шт.

3

962-8055

SCREW,Hex Skt, M8 x 55mm, Cl 10.9

Two Spool Valve

4шт.

3

87516596

STUD,M8 x 120mm, Cl 10.9

Three Spool Valve

4шт.

3

87311891

STUD

Four Spool Valve

4шт.

4

892-11008

LOCK WASHER,8mm ID

4шт.

5

8604567

VALVE, CHECK

4шт.

6

8604568

HYDRAULIC VALVE

Anticavitation, For Seal Kit Order 7

2-6шт.

7

87692467

SEAL KIT

For 6, Available in Kit Only

1шт.

8

87692469

SEAL KIT

For Seal Kit Order 9

2шт.

9

8602925

VALVE PRESSURE RELIE

1шт.

10

87613469

HYDRAULIC VALVE

Flow Limiting, For Seal Kit Order 11

1шт.

11

8602916

SEAL KIT

For 10, Available in Kit Only

1шт.

12

87311965

INSERT

Pilot Pressure

1шт.

13

8602913

HYDRAULIC VALVE

Flow Limiting, For Seal Kit Order 14

1шт.

14

8604592

SEAL KIT

For 14, Available in Kit Only

1шт.

15

87362307

CHECK VALVE

1шт.

16

8604575

SEAL KIT

For Main Housing, Available in Kit Only

1шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.
