(35.357.01[03]) - VALVE ASSEMBLY, LOADER CONTROL, THIRD AND FOURTH SPOOL, Z-BAR AND XR/LR

Запчасти Case 621F (35.357.01[03]) - VALVE ASSEMBLY, LOADER CONTROL, THIRD AND FOURTH SPOOL, Z-BAR AND XR/LR (35) - HYDRAULIC SYSTEMS

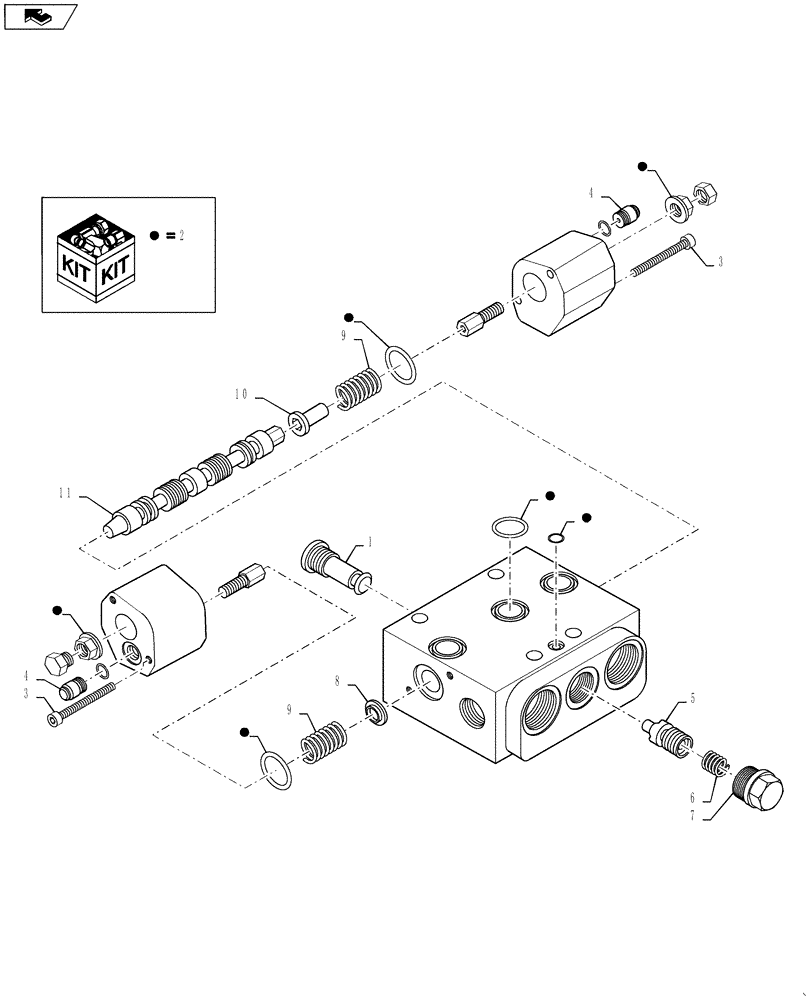

Схема запчастей Case 621F - (35.357.01[03]) - VALVE ASSEMBLY, LOADER CONTROL, THIRD AND FOURTH SPOOL, Z-BAR AND XR/LR (35) - HYDRAULIC SYSTEMS
1
2
2
home
3
1
8
9
4
4
2
11
5
3
2
7
2
10
2
9
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8604567

VALVE, CHECK

1шт.

2

8604566

SEAL KIT

Available in Kit Only

1шт.

3

87657975

HEX SOC SCREW,M5 x 55mm, Cl 8.8

M5 X 55; 8.8

4шт.

4

8604578

CHECK VALVE

2шт.

5

8604579

VALVE

1шт.

6

8604580

SPRING

Compression

1шт.

7

8604781

VALVE

Throttle Check

1шт.

8

8604582

RETAINER

Spring

1шт.

9

8604583

SPRING

Compression

2шт.

10

87311984

RETAINER

Retainer

1шт.

11

87311975

SPOOL

1шт.

Выбрано товаров: 11
