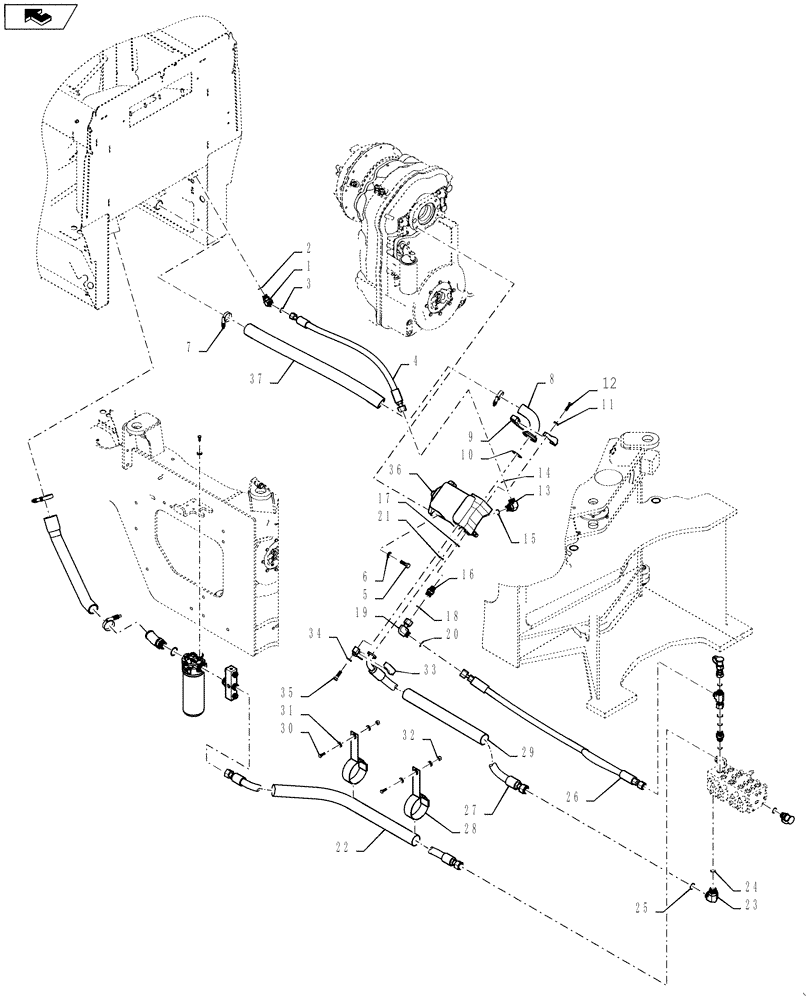

Запчасти Case 621F (35.300.02) - HYDRAULIC RESERVIOR SUPPLY LINE (35) - HYDRAULIC SYSTEMS

1

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

2

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

87629991

HOSE

Case Drain

1шт.

5

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

2шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

7

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Constant Torque

2шт.

8

388509A1

TUBE,50.8 mm OD, 130, 100 mm Length

Pump Suction

1шт.

9

L14386

CLAMP

2шт.

10

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

11

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

12

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

13

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 14 - 15

1шт.

14

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

16

700-100

HYD CONNECTOR,9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl 17 - 18

1шт.

17

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

18

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

19

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 20

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

22

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

Sleeve

1шт.

23

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 24 - 25

1шт.

24

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

25

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

26

388558A1

HOSE ASSY.

Pump Load Sensing

1шт.

27

388555A2

HOSE ASSY.

Pump Pressure

1шт.

28

401527A2

STRAP

2шт.

29

401525A1

HOSE PROTECTION,60.00 mm ID x 600.00 mm

Sleeve

1шт.

30

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

31

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

32

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

33

86985567

FLANGE

2шт.

34

895-11014

WASHER,M14 x 28 x 2.5

4шт.

35

627-14045

BOLT,Hex, M14 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

36

377608A1

PUMP

For Pilot Valve See 38

1шт.

36

76082592R

REMAN-HYD PUMP

621F TIER 4, Reman for new P/N 377608A1

1шт.

36

76082592C

CORE-HYDRAULIC PUMP

Return Number

1шт.

37

388556A1

HOSE ASSY.

Pump Suction

1шт.

38

8604960

CONTROL VALVE

Pilot Valve for 36

1шт.
