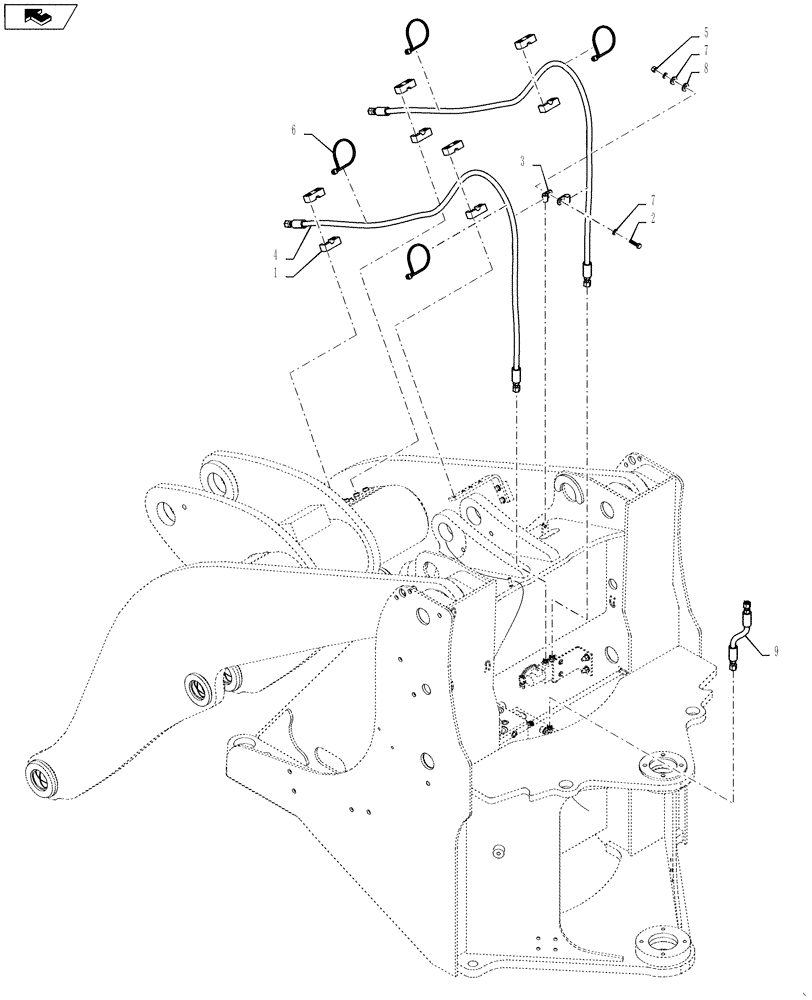

Запчасти Case 621F (35.200.01) - COUPLER LINE INSTALLATION, Z BAR LOADER ONLY (35) - HYDRAULIC SYSTEMS

1

379374A1

BLOCK

Mounting

4шт.

2

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

3

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

2шт.

4

87403305

HOSE

Coupler, Z-Bar, 2229 mm (87 - 3/4 in)

2шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

Strap

4шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

9

87403985

HOSE

Coupler Pressure, Z-Bar; 308 mm (12 - 1/8 in)

1шт.
