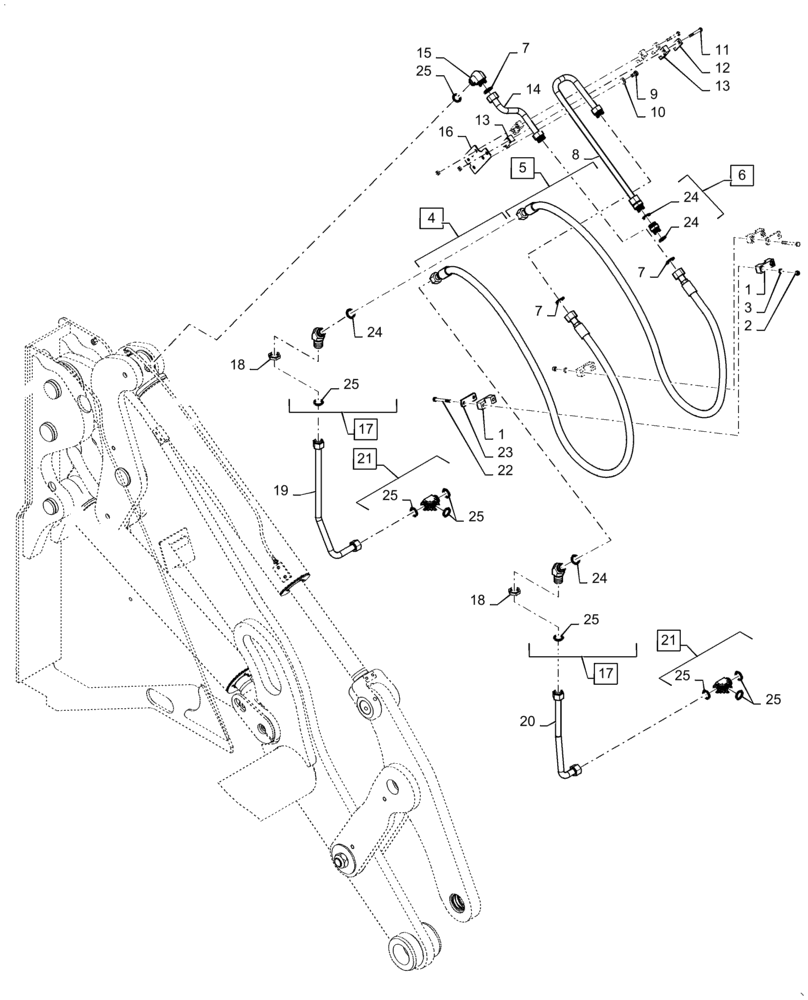

Запчасти Case 621F (35.100.05) - TILT CYLINDER LINES AND FITTINGS, XT/TC LEFT SIDE (35) - HYDRAULIC SYSTEMS

1

87452747

CLAMP,33.4mm ID

2шт.

2

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

4

87304926

HOSE ASSY.,19.05mm ID x 2252mm L, SAE 100R12

Incl 7

1шт.

5

87304928

HOSE ASSY.,19.05mm ID x 2273mm L, SAE 100R12

Incl 7

1шт.

6

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 24

1шт.

7

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Incl 4 - 5

3шт.

8

87445806

HYD TUBE,22mm ID x 25mm OD x 697mm L

1шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

10

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

11

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

12

367658A1

PLATE

2шт.

13

367489A1

BLOCK

2шт.

14

87447895

HYD TUBE,25mm OD x 259, 125mm L

1шт.

15

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

2шт.

16

87447893

BRACKET

1шт.

17

701-366

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Incl 24 - 25

2шт.

18

701-908

BHD LOCK NUT,1-7/16" - 12

2шт.

19

87452603

HYD TUBE,25mm OD

1шт.

20

87445798

HYD TUBE,22mm ID x 25mm OD x 437mm L

1шт.

21

701-410

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Incl 25

2шт.

22

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

23

8500858

PLATE

2шт.

24

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Incl 6, 17, 21

4шт.

25

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Incl 17, 21

9шт.
