(35.100.03) - LIFT CYLINDER LINES AND FITTINGS, XT/TC

Запчасти Case 621F (35.100.03) - LIFT CYLINDER LINES AND FITTINGS, XT/TC (35) - HYDRAULIC SYSTEMS

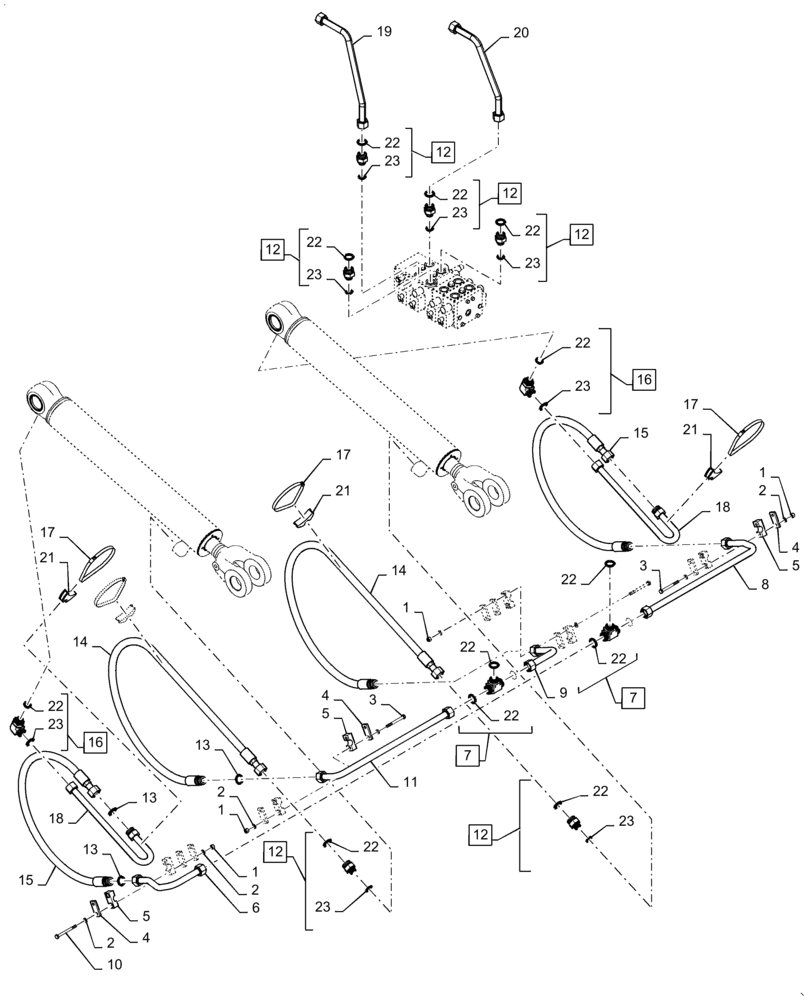

Схема запчастей Case 621F - (35.100.03) - LIFT CYLINDER LINES AND FITTINGS, XT/TC (35) - HYDRAULIC SYSTEMS
14
21
16
22
23
13
1
15
12
19
23
18
22
5
5
3
22
23
20
8
17
2
22
3
22
14
22
4
21
21
9
23
22
1
13
16
22
12
23
22
12
2
12
10
4
4
2
5
13
12
17
23
11
18
22
1
6
23
15
7
12
22
23
1
2
17
22
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

3

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

4

367658A1

PLATE

4шт.

5

367489A1

BLOCK

4шт.

6

87389172

HYD TUBE,19.4 mm ID x 25.40 mm OD x 222, 161.5 mm L

1шт.

7

701-410

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Incl 22

2шт.

8

8606092

TUBE,22mm ID x 25mm OD x 659mm L

1шт.

9

8606098

TUBE,25.40 mm OD x 162, 142 mm L

1шт.

10

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

11

8606100

TUBE,25.40mm OD x 110, 659mm L

1шт.

12

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

4шт.

13

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

14

87448550

HOSE ASSY.

1шт.

15

86983387

HOSE ASSY.

1шт.

16

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 22 - 23

2шт.

17

214-14104

HOSE CLAMP,155.45mm - 177.8mm

2шт.

18

87448548

HYD TUBE,22mm ID x 25mm OD x 465mm L

2шт.

19

389351A1

TUBE,25.4mm OD, 410, 255mm Length

1шт.

20

389349A1

TUBE,22mm ID x 25mm OD x 360mm L

1шт.

21

391133A1

CLAMP

2шт.

22

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Incl 7, 12, 16

10шт.

23

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Incl 12, 16

4шт.
