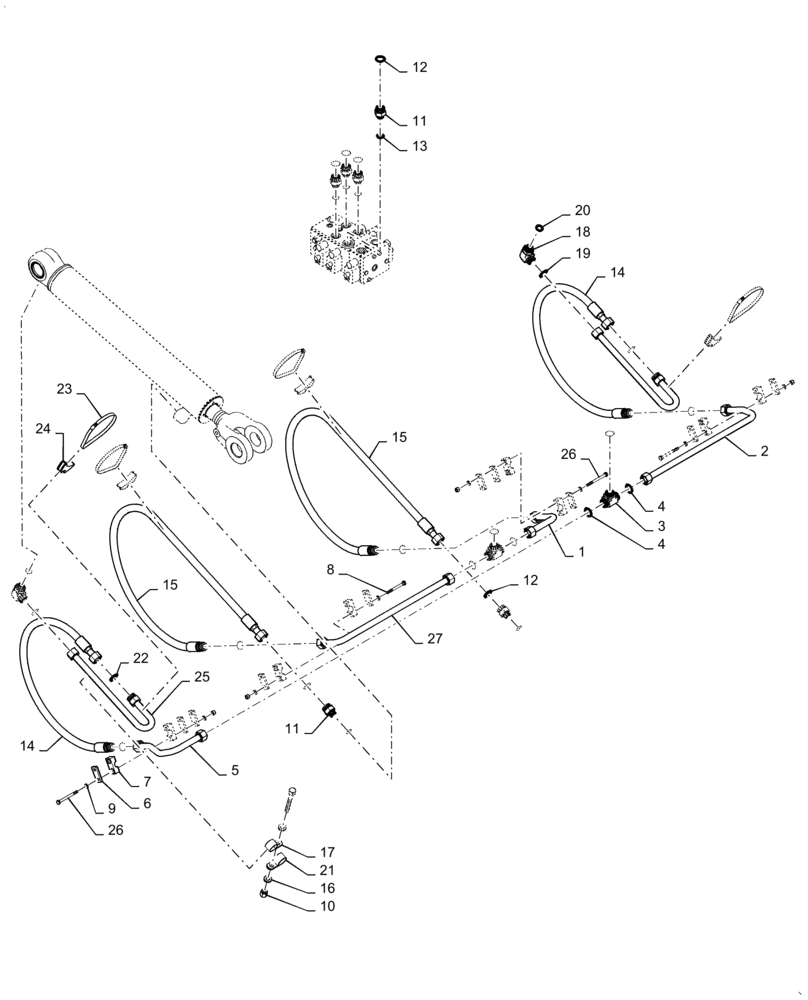

Запчасти Case 621F (35.100.02) - LIFT CYLINDER LINES AND FITTINGS, Z-BAR AND XR/LR BAR (35) - HYDRAULIC SYSTEMS

1

8606098

TUBE,25.40 mm OD x 162, 142 mm L

Lift, Rod End

1шт.

2

8606092

TUBE,22mm ID x 25mm OD x 659mm L

Lift, Head End

1шт.

3

701-410

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Also Order 4

2шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

5

87389172

HYD TUBE,19.4 mm ID x 25.40 mm OD x 222, 161.5 mm L

Lift, Head End

1шт.

6

367658A1

PLATE

Clamp Cover

10шт.

7

367489A1

BLOCK

Tube Mounting

4шт.

8

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

10шт.

11

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Also Order 12-13

6шт.

12

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

13

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

14

86983386

FLEXIBLE HOSE,19.05mm ID x 1145mm L

Lift

2шт.

15

372359A1

HOSE ASSY.

Lift

2шт.

16

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

17

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

2шт.

18

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Also Order 19-20

2шт.

19

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

21

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

2шт.

22

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

6шт.

23

214-1496

HOSE CLAMP,#96, 5.56" - 6.5", Type F Worm

2шт.

24

391133A1

CLAMP

3шт.

25

86983366

TUBE,25.40 mm OD x 385, 64 mm L

Lift Cylinder

2шт.

26

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

27

8606100

TUBE,25.40mm OD x 110, 659mm L

1шт.
