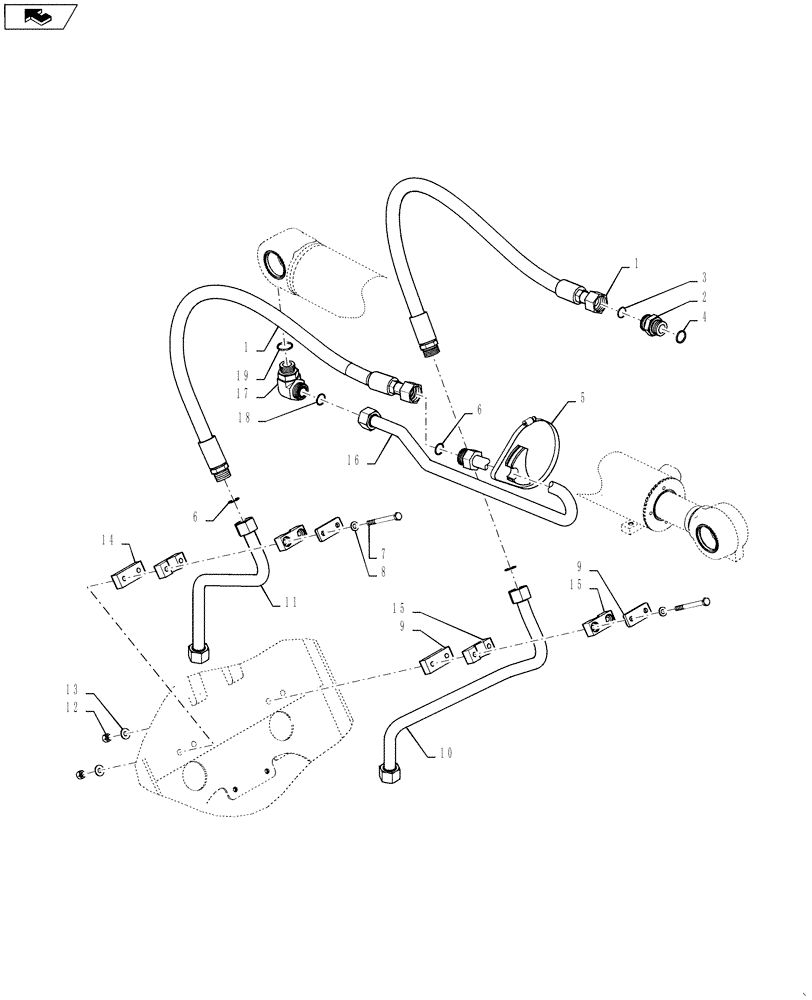

Запчасти Case 621F (35.100.01) - TILT CYLINDER LINES AND FITTINGS, Z-BAR AND XR/LR BAR (35) - HYDRAULIC SYSTEMS

1

389161A1

HOSE ASSY.

Tilt Cylinder

2шт.

2

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Also Order 3-4

1шт.

3

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

4

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

5

214-14104

HOSE CLAMP,155.45mm - 177.8mm

1шт.

6

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

3шт.

7

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

367658A1

PLATE

Clamp Cover

2шт.

10

8605369

TUBE,25.40 mm OD

Tilt Rod End

1шт.

11

389049A1

TUBE,25.4 mm OD, 446, 252 mm Length

Tilt Head End

1шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

14

87324906

SPACER

Tube Mounting

2шт.

15

367489A1

BLOCK

Tube Mounting

2шт.

16

8605367

TUBE,25.40 mm OD

Tilt Cylinder

1шт.

17

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Also Order 18-19

1шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

19

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.
