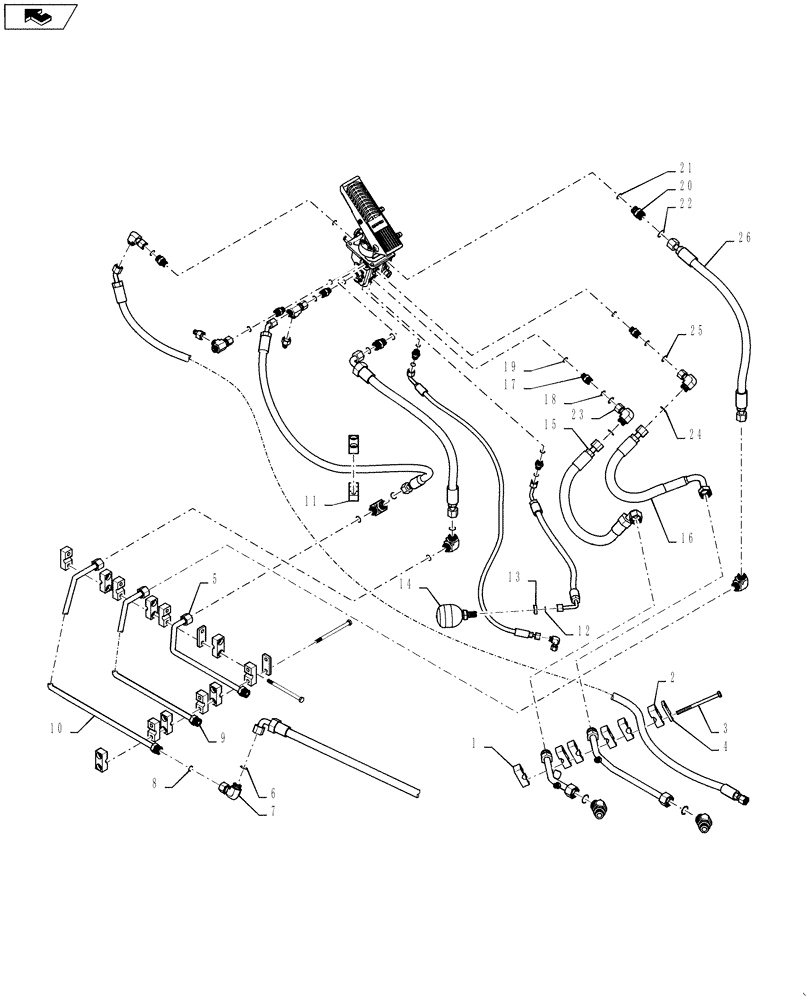

Запчасти Case 621F (33.202.04) - MAIN BRAKES HYDRAULICS RESERVOIR (33) - BRAKES & CONTROLS

1

379374A1

BLOCK

Tube Mounting

1шт.

2

8501052

SPECIAL CLAMP

1шт.

3

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

2шт.

4

367658A1

PLATE

Clamp Cover

2шт.

5

87326268

TUBE,15.88 mm OD

Rear Axle Brake

1шт.

6

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

7

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 8

1шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

87326262

TUBE,15.88 mm OD

Brake Supply

1шт.

10

87326263

TUBE,15.88 mm OD

Fan Supply

1шт.

11

367489A1

BLOCK

Tube Mounting

2шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

701-909

NUT,11/16" - 16

1шт.

14

8500209

ACCUMULATOR

Parking Brake

1шт.

15

84308885

FLEXIBLE HOSE

Front Brake Accumulator, Serial Range: -NEF221608

1шт.

15

47574949

HOSE

Front Brake Accumulator, Start Serial: NEF221609

1шт.

16

84308886

FLEXIBLE HOSE

Rear Accumulator, Serial Range: -NEF221608

1шт.

16

47574950

HOSE

Rear Accumulator, Start Serial: NEF221609

1шт.

17

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 18 - 19

2шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

19

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

20

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 21 - 22

1шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

22

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

23

84168350

90 ELBOW,1" - 14 ORFS x 13/16" - 16 Female Swivel

Incl 24 - 25

2шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

26

84300560

FLEXIBLE HOSE

Brake Valve Supply

1шт.
