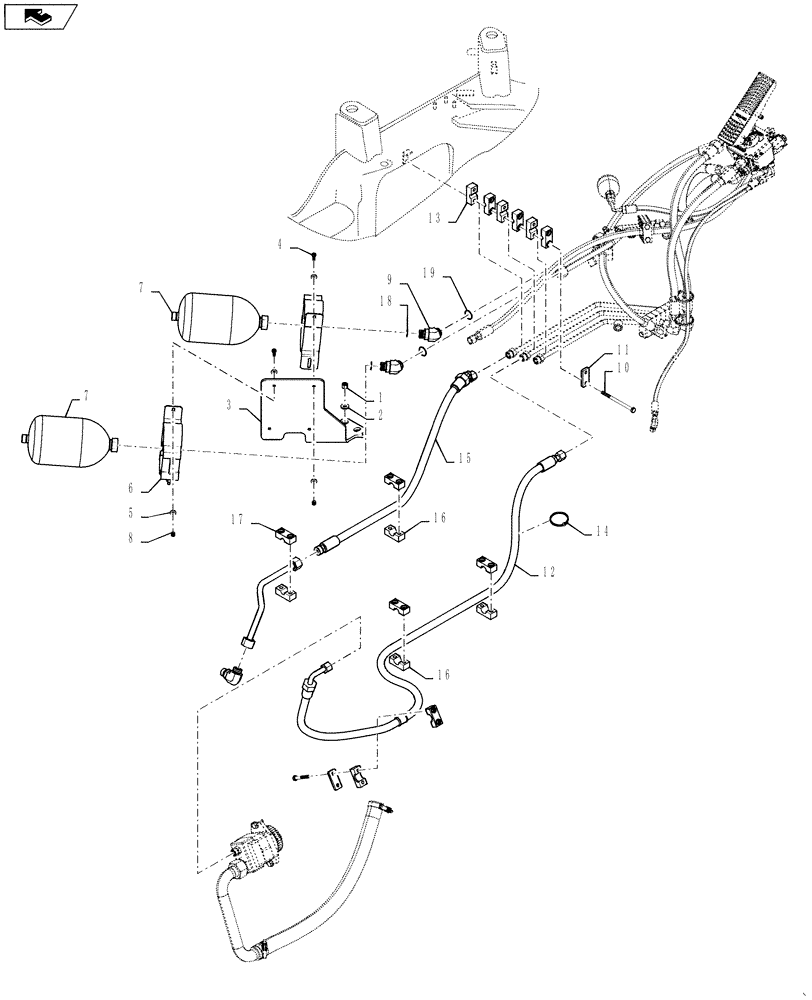

Запчасти Case 621F (33.202.02) - MAIN BRAKE HYDRAULICS, ACCUMULATOR (33) - BRAKES & CONTROLS

1

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

2

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

3

84295689

BRACKET, SUPPORTING

Brake Accumulator

1шт.

4

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

6

8501315

CLAMP,167mm - 175mm

2шт.

7

87728740

ACCUMULATOR

Service Brake

2шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

9

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 18 - 19

2шт.

10

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

4шт.

11

367658A1

PLATE

Clamp Cover

2шт.

12

87377350

HOSE ASSY.

Brake Pump Pressure

1шт.

13

8500210

CLAMP

6шт.

14

L11541

CABLE TIE,203.2mm L, Nylon

Strap

1шт.

15

87658724

HOSE ASSY.

Fan Supply

1шт.

16

367489A1

BLOCK

Tube Mounting

2шт.

17

379374A1

BLOCK

Tube Mounting

1шт.

18

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

19

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
