Запчасти Case 621F (33.202.01) - MAIN BRAKE HYDRAULICS, PUMP (33) - BRAKES & CONTROLS

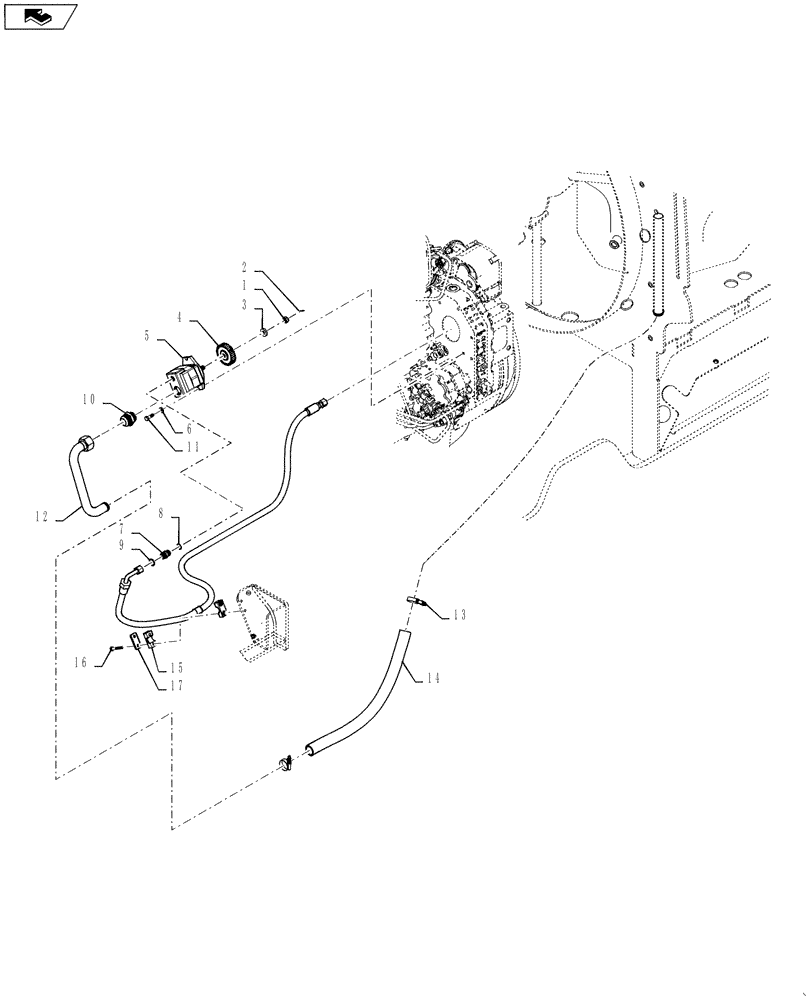

Схема запчастей Case 621F - (33.202.01) - MAIN BRAKE HYDRAULICS, PUMP (33) - BRAKES & CONTROLS
3
8
5
16
6
2
15
home
4
17
12
7
10
14
1
13
9
11

Артикул

Название

Примечание

Количество

1

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

2

733-3232

COTTER PIN,M3.2 x 32

1шт.

3

87373112

WASHER,20mm ID x 36mm OD x 7.5mm Thk

Gear Mounting

1шт.

4

87389871

GEAR

Accessory Drive

1шт.

5

47526503

HYDRAULIC PUMP

, Start Serial: NDF221196

1шт.

5

87342166

HYDRAULIC PUMP,23.6 CC

, Serial Range: -NDF221195

1шт.

5

87342166R

REMAN-HYD PUMP

1шт.

5

87342166C

CORE-INJECTION PUMP

Return Number

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

7

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 8 - 9

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

10

87555427

HYD CONNECTOR

1шт.

11

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

12

87554993

RIGID TUBE,28 mm ID x 38 mm OD x 310, 105 mm L

1шт.

13

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Constant Torque

2шт.

14

84399612

HOSE,38.1mm ID x 850mm L, SAE 100R4

Suction

1шт.

15

8606002

CLAMP

Tube Mounting

1шт.

16

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

2шт.

17

367658A1

PLATE

Clamp Cover

1шт.

Выбрано товаров: 20
