(27.100.03) - REAR AXLE LMT SLIP CARRIER

Запчасти Case 621F (27.100.03) - REAR AXLE LMT SLIP CARRIER (27) - REAR AXLE SYSTEM

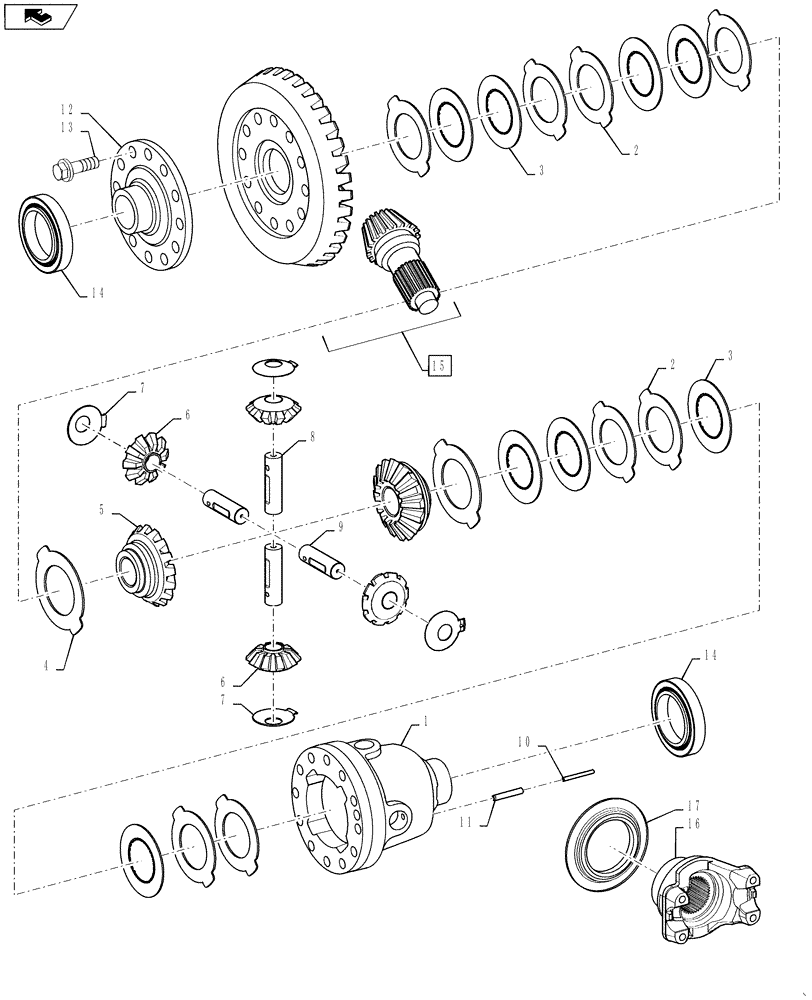

Схема запчастей Case 621F - (27.100.03) - REAR AXLE LMT SLIP CARRIER (27) - REAR AXLE SYSTEM
6
4
15
13
3
14
7
2
1
9
16
3
5
10
14
home
12
7
2
6
8
11
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

84355952R

REMAN-REAR AXLE

621F Rear Axle w/Limited Slip

1шт.

84355952C

CORE-REAR AXLE

Return Number

1шт.

1

84496901

HOUSING

Differential

1шт.

2

87742939

CLUTCH PLATE

CLUTCH DISK 1.8mm Outer

9шт.

2

87742940

CLUTCH PLATE

CLUTCH DISK 1.9mm Outer

9шт.

2

87742941

DISC,Axle, Friction

CLUTCH DISK 2.0mm Outer

9шт.

3

87742942

CLUTCH DISC

CLUTCH DISK Inner

8шт.

4

87742943

THRUST WASHER

2шт.

5

84496911

GEAR

Bevel Axle

2шт.

6

84496902

GEAR

Bevel Diff

4шт.

7

84496904

WASHER

Thrust

4шт.

8

84496905

SHAFT

Long

1шт.

9

84496906

SHAFT

Short

2шт.

10

84475471

ROLL PIN

Slotted

2шт.

11

87742960

PIN

Slotted

2шт.

12

87742961

COVER

Housing

1шт.

13

184716A1

SCREW

12шт.

14

8603222

ROLLER BEARING,65mm ID x 140mm OD x 36mm W

2шт.

15

87485971

GEAR SET

Set

1шт.

16

8603266

FLANGE

Input

1шт.

17

87742958

PROTECTOR

Cover

1шт.
