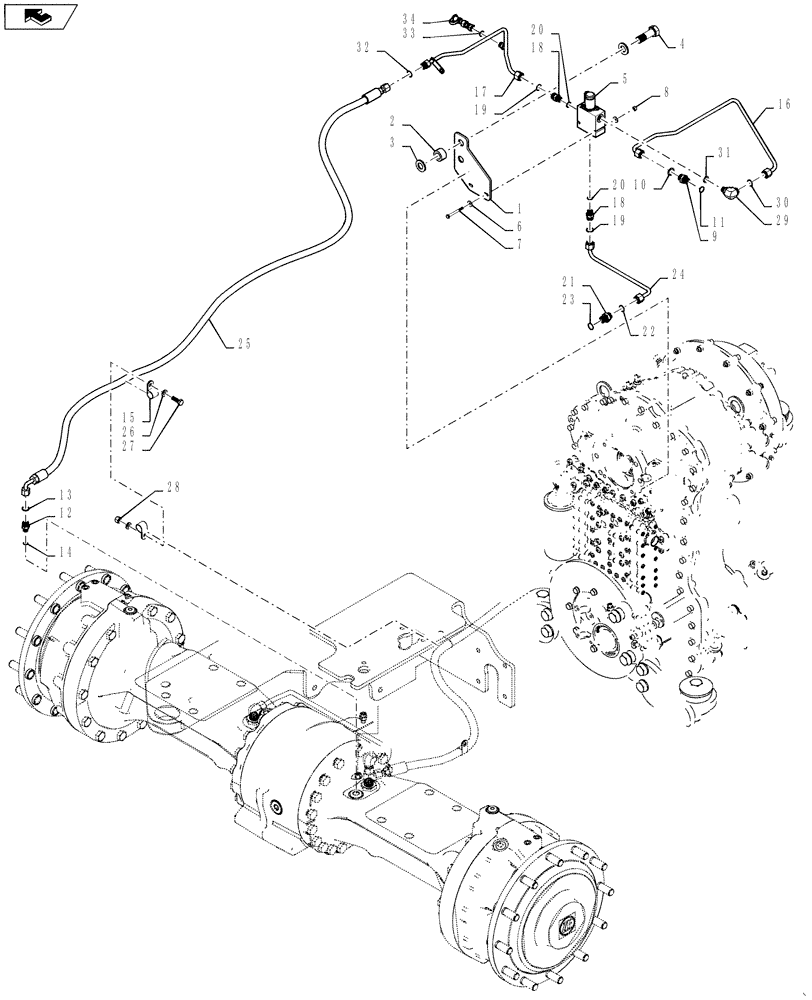

Запчасти Case 621F (25.100.01[01]) - FRONT AXLE HOSE INSTALLATION LOCKING DIFFERENTIAL (27) - REAR AXLE SYSTEM

84355952

REAR AXLE

1шт.

1

84415308

BRACKET

Diff Lock Valve CNH Black

1шт.

2

87036419

SPACER,26.64mm ID x 33.4mm OD x 19.05mm L

2шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

4

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

2шт.

5

84300976

LOCK VALVE

Diff

1шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

7

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

9

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 10 - 11

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

Incl 13 - 14

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

15

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

2шт.

16

84414911

TUBE

Diff Lock Press

1шт.

17

84481260

RIGID TUBE

Diff Lock Axle Press

1шт.

18

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 19 - 20

2шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

21

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 22 - 23

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

23

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

24

84492784

TUBE

Diff Lock Return

1шт.

25

84412663

HOSE

Diff Lock Axle Press

1шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

27

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

28

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

29

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 30 - 31

1шт.

30

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

31

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

32

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

33

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

34

190117A1

COUPLING

Diagnostic

1шт.
