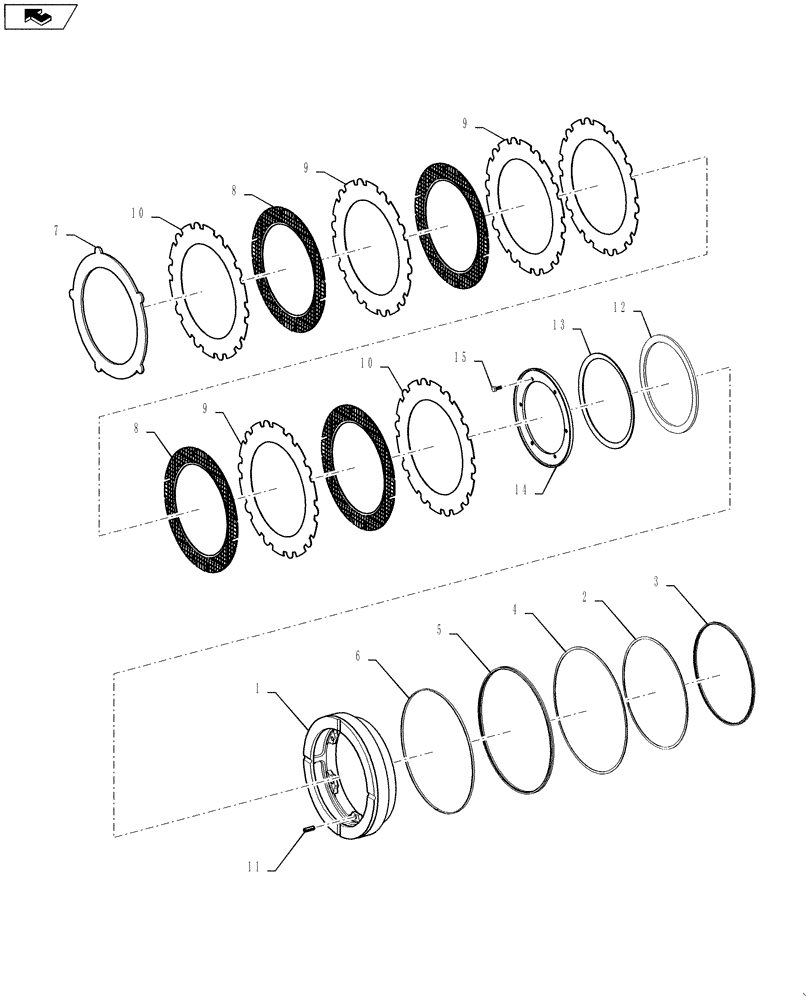

Запчасти Case 621F (25.100.10) - FRONT AXLE BRAKE LIMITED SLIP (25) - FRONT AXLE SYSTEM

1

84353913

PISTON

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

Brake Piston

1шт.

3

8603577

RING

Piston Seal

1шт.

4

8605315

SEAL

Brake Piston

1шт.

5

8603579

RING

Piston Seal Support

1шт.

6

8603580

SNAP RING

Piston Brake Guide

1шт.

7

84150637

SHIM

End

1шт.

8

Available In Kit Only See 16

4шт.

9

Available In Kit Only See 16

3шт.

10

Avaibale In Kit Only See 16

2шт.

11

87743218

PIN

6шт.

12

84329424

CUP WASHER

1шт.

13

84329425

SPRING CUP

1шт.

14

84395485

COVER PLATE

1шт.

15

84395924

SCREW

6шт.

16

87365252

REPAIR KIT

Brake Service Kit, One Kit Per Axle

1шт.
