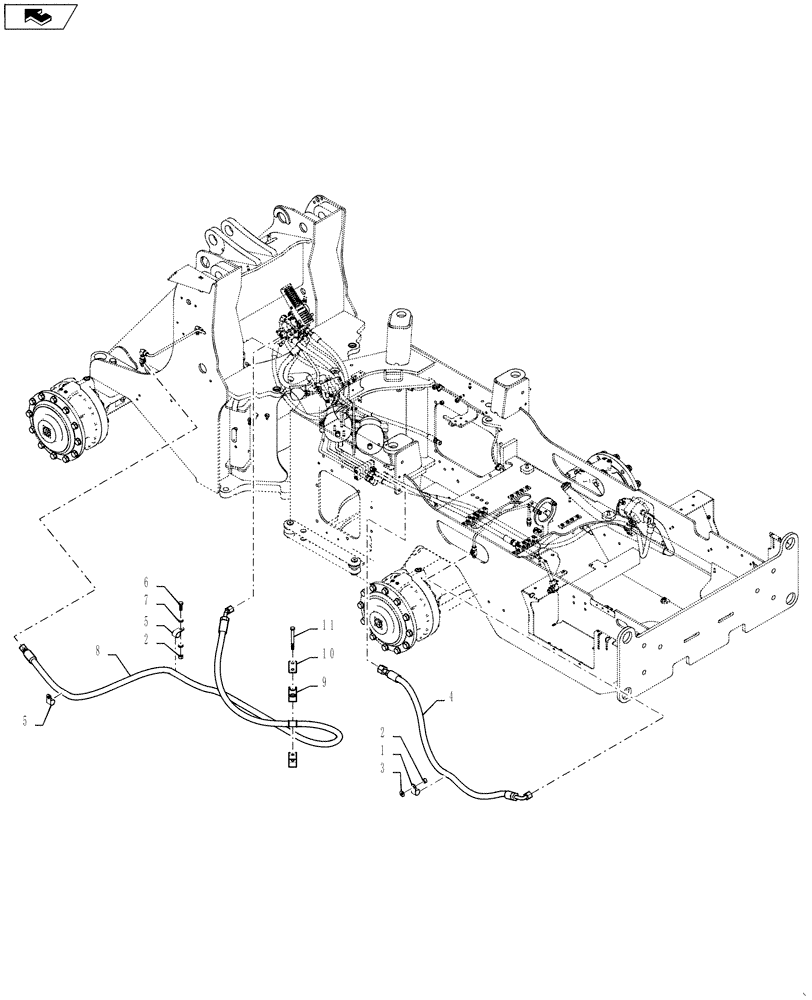

Запчасти Case 621F (25.100.03) - BRAKE LINE INSTALLATION STANDARD AXLE (25) - FRONT AXLE SYSTEM

1

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

2

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

4

87587480

HOSE ASSY.

Rear Axle Brake

1шт.

5

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

2шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

8

87689318

HOSE ASSY.

Front Axle Brake

1шт.

9

367489A1

BLOCK

Tube Mounting

1шт.

10

367658A1

PLATE

1шт.

11

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.
