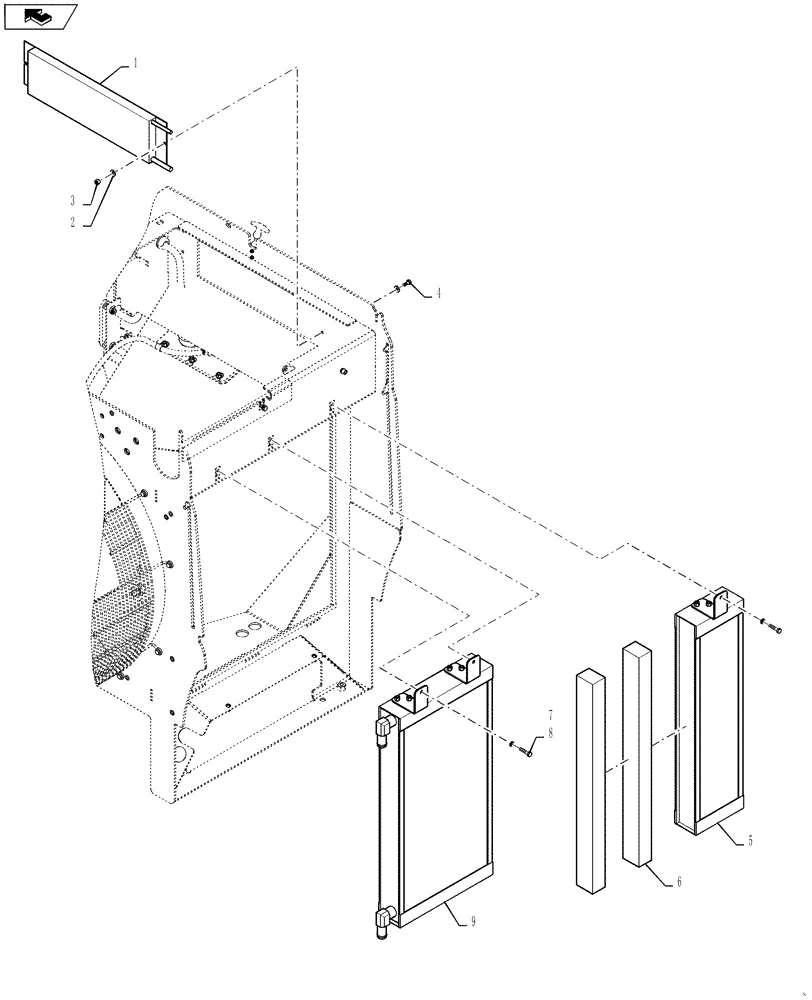

Запчасти Case 621F (21.109.01) - TRANSMISSION COOLER INSTALLATION, STANDARD (21) - TRANSMISSION

1

347615A3

FUEL COOLER

Fuel

1шт.

2

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

3

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

5

8501296

OIL COOLER

Hydraulic

1шт.

6

8500206

SEALING STRIP,65mm W x 734mm L x 50mm Thk

Foam, Oil Cooler

2шт.

7

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

3шт.

8

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

9

8501295

OIL COOLER

Transmission

1шт.
