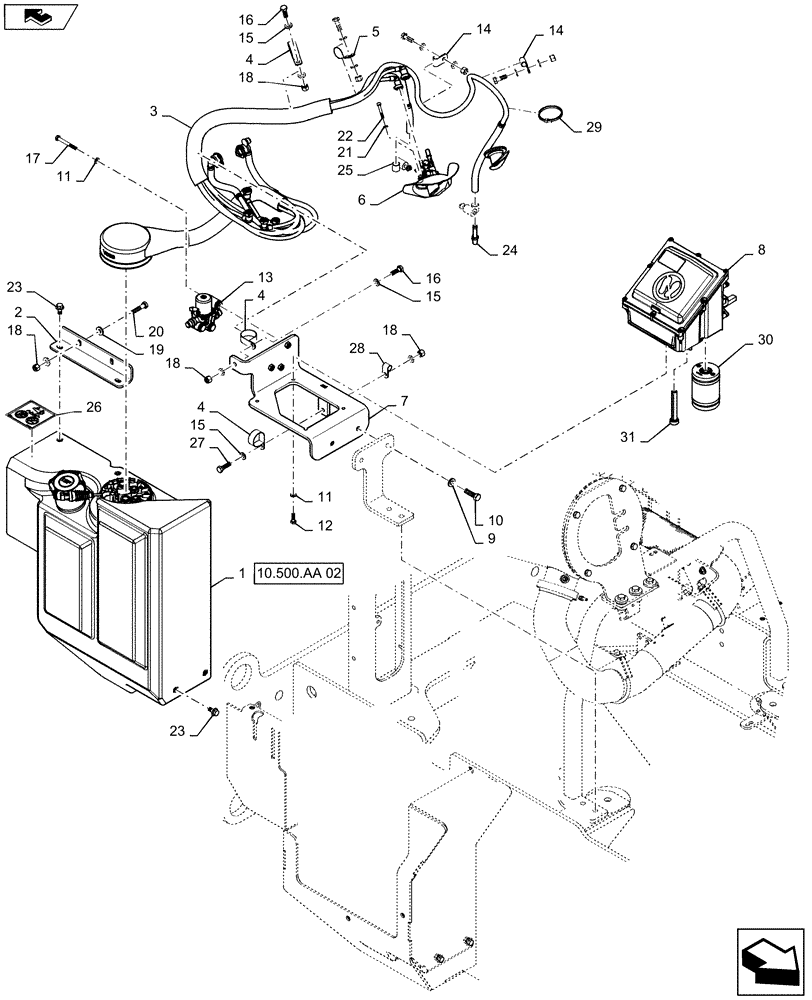

Запчасти Case 621F (10.500.01) - DEF TANK INSTALLATION (10) - ENGINE

1

84483056

TANK

See Fig. 10.500.AA (02)

1шт.

2

84299672

BRACKET

1шт.

3

84349262

HOSE ASSY.

Def

1шт.

4

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

3шт.

5

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

1шт.

6

84247021

MODULE,Dosing Injector

Denox Urea Dosing

1шт.

7

84414509

BRACKET, SUPPORTING

Supply Module

1шт.

8

84381066

MODULE

DCU Flashed

1шт.

8

84246892R

REMAN-MODULE

621F TIER 4 (NA) (1/12-), Reman For New P/N 84381066

1шт.

8

84246892C

CORE-MODULE

Return Number

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

12

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

13

84151635

HEATER VALVE

1шт.

14

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

12шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

5шт.

17

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

3шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

19

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

20

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

22

84233542

HEX SOC SCREW

3шт.

23

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

24

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

25

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

26

84284896

DECAL,DEF TANK identification label

1шт.

27

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

28

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

29

L11541

CABLE TIE,203.2mm L, Nylon

Strap

1шт.

30

84254852

FILTER

Main Fuel Filter, For Cap see 32

1шт.

31

84247272

FILTER,In-Line

Inline Filter

1шт.

32

47401714

FILTER HEAD

1шт.
