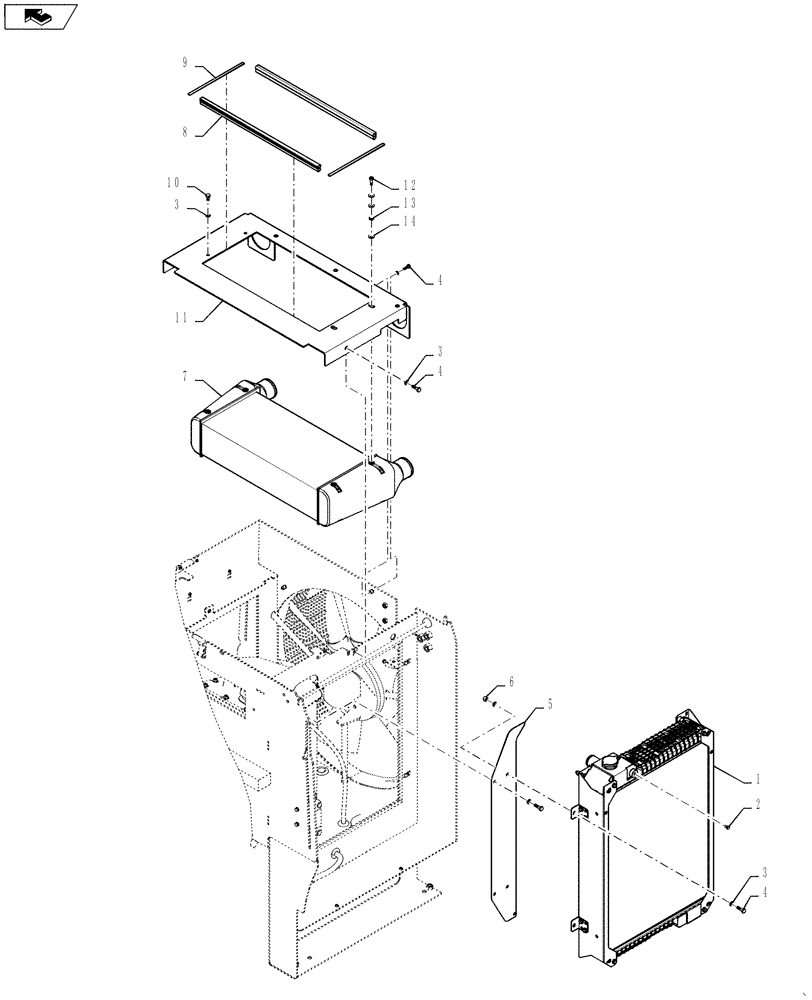

Запчасти Case 621F (10.408.01) - VAR 482585 - RADIATOR, CHARGE AIR COOLER INSTALLATION, STANDARD (10) - ENGINE

1

84232364

RADIATOR

1шт.

1

A170241

RADIATOR CAP

Cap for Radiator

1шт.

2

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

1шт.

3

892-11008

LOCK WASHER,8mm ID

16шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

9шт.

5

87324042

PLATE

Radiator

1шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

7

347613A1

AFTERCOOLER

Charge Air

1шт.

8

8500144

SEAL

Bulb, Charge Air

2шт.

9

8500143

FOAM INSULATION,9mm W x 290mm L x 3mm Thk

Foam, Charge Air

2шт.

10

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

11

84227961

PLATE

Charge Air

1шт.

12

561-703

HEX SOC SCREW,M8 x 32.4, 10 x 16mm shldr, Cl 12.9

2шт.

13

386040R1

SPRING

Poppet Return

2шт.

14

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.
