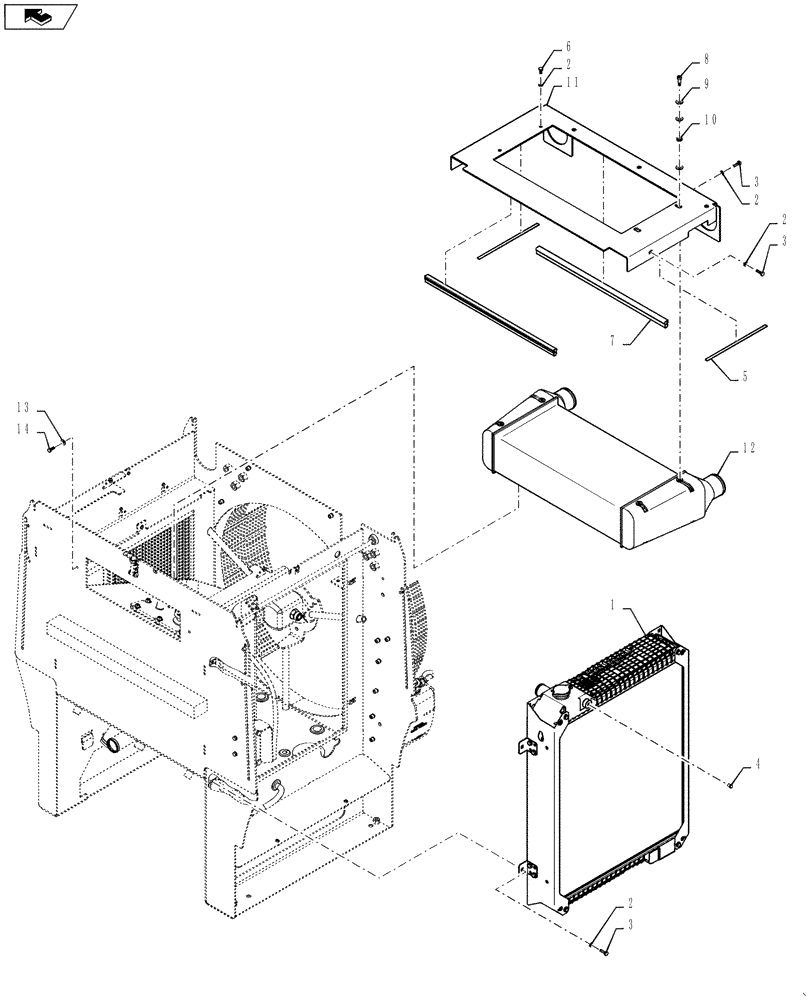

Запчасти Case 621F (10.408.01[01]) - VAR 482931 - RADIATOR, CHARGE AIR COOLER INSTALLATION, HEAVY DUTY (10) - ENGINE

1

87740232

RADIATOR

Heavy Duty

1шт.

2

892-11008

LOCK WASHER,8mm ID

10шт.

3

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

4

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

1шт.

5

8500143

FOAM INSULATION,9mm W x 290mm L x 3mm Thk

Foam, Charge Air

2шт.

6

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

7

8500144

SEAL

Bulb, Charge Air

2шт.

8

561-703

HEX SOC SCREW,M8 x 32.4, 10 x 16mm shldr, Cl 12.9

2шт.

9

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

6шт.

10

386040R1

SPRING

Poppet Return

2шт.

11

84227961

PLATE

1шт.

12

347613A1

AFTERCOOLER

Heavy Duty

1шт.

13

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

14

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.
