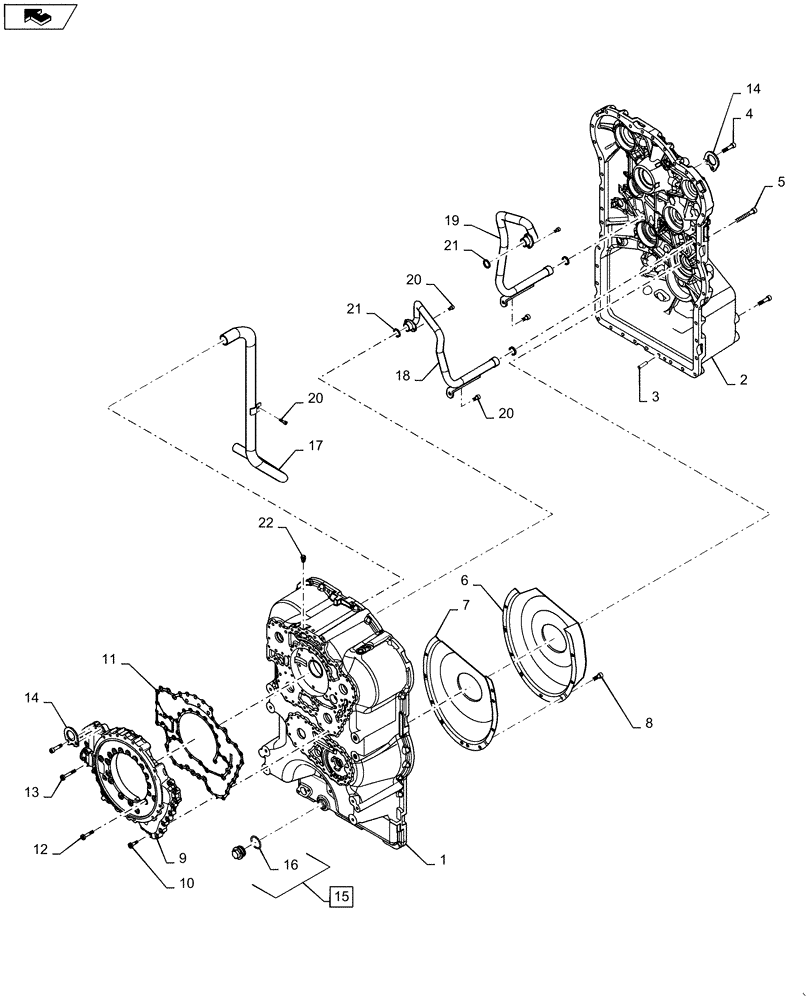

Запчасти Case 521F (21.113.AQ) - VAR - 424224 - TRANSMISSION HOUSING AND TUBES (21) - TRANSMISSION

1

87712680

TRANSMISSION HOUSING

Front Section

1шт.

2

84252191

TRANSMISSION HOUSING

Rear Section

1шт.

3

1493416

PIN

Transmission Housing

2шт.

4

47775399

SCREW

M10 x 40

35шт.

5

47775403

SCREW

M10 x 60

6шт.

6

8603304

HOUSING

Gear Shield

1шт.

7

8603305

GUARD

Gear Shield

1шт.

8

47416356

SCREW

Cap, M8 x 12

4шт.

9

87712648

HOUSING

Oil Feed

1шт.

10

47775409

SCREW

M8 x 30

15шт.

11

8603309

GASKET

Oil Feed Housing

1шт.

12

47775415

SCREW

M8 x 45

21шт.

13

47746174

SCREW

Cap, M10 x 40

4шт.

14

8603316

PLATE

Fixing

2шт.

15

47745409

PLUG

Incl 16

1шт.

16

8603318

O-RING

Oil Tube

1шт.

17

84396311

TUBE

Suction

1шт.

18

8605280

TUBE

Oil

1шт.

19

8605281

TUBE

Oil

1шт.

20

8603306

SCREW,M8 x 12mm

Cap, M8 x 12

7шт.

21

8603725

O-RING

Oil Tube

4шт.

22

8603214

BREATHER

21.2mm L x 13.5mm W

1шт.
