(21.105.BC) - VAR - 424224 - TRANSMISSION OIL FILTER AND FILL COVER

Запчасти Case 521F (21.105.BC) - VAR - 424224 - TRANSMISSION OIL FILTER AND FILL COVER (21) - TRANSMISSION

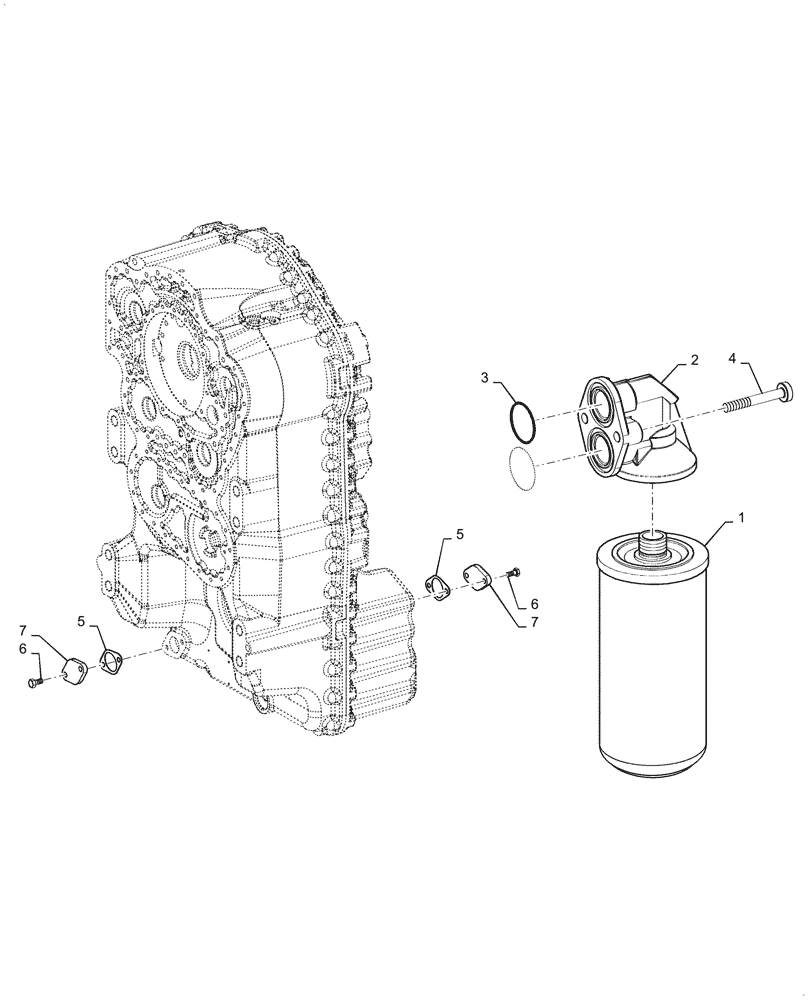

Схема запчастей Case 521F - (21.105.BC) - VAR - 424224 - TRANSMISSION OIL FILTER AND FILL COVER (21) - TRANSMISSION
3
4
6
2
6
5
7
5
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87519452

HYDRAULIC OIL FILTER

Transmission

1шт.

2

8603403

FILTER HEAD

Hydraulic oil

1шт.

3

87712670

O-RING

Filter Head

2шт.

4

47746174

SCREW

M8 x 60

2шт.

5

8603281

GASKET

Plate Cover

2шт.

6

84396193

SCREW

Plate Cover

4шт.

7

8603217

COVER

Plate, 8mm Thk

2шт.
