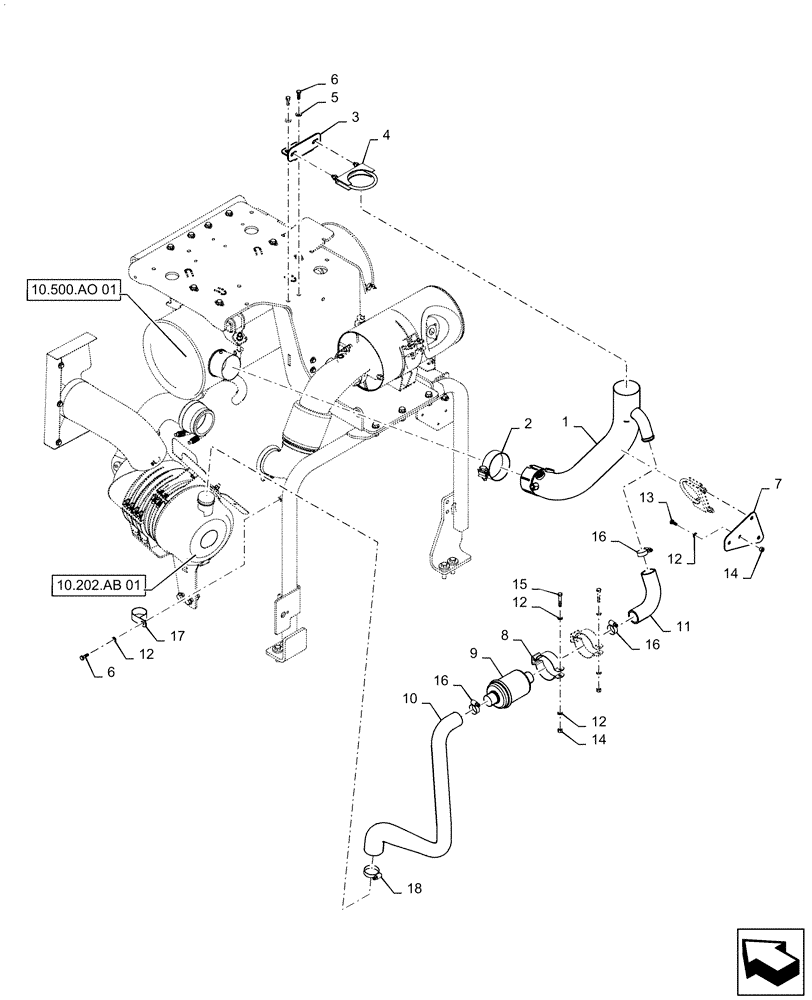

Запчасти Case 521F (10.500.AO[02]) - VAR - 752673 - EXHAUST PIPE EXTENSION W/ ASPIRATOR (10) - ENGINE

1

47732817

PIPE

SCR Outlet, Aspirated

1шт.

2

84140242

CLAMP

3.5" OD

1шт.

3

47685239

BRACKET

Mounting, Extension Pipe

1шт.

4

BN2400371

CLAMP

Muffler, 3.5"

2шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

7

47751139

BRACKET

Mounting, Aspirator to Pipe

1шт.

8

90-7639T1

CLAMP

Aspirator Securing

2шт.

9

90-7640T1

VALVE

Aspirator

1шт.

10

47756236

HOSE

Lower, Aspirator to Air Cleaner

1шт.

11

47756205

HOSE

Upper, Aspirator to Pipe

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

13

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

15

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

16

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

3шт.

17

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

1шт.

18

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.
