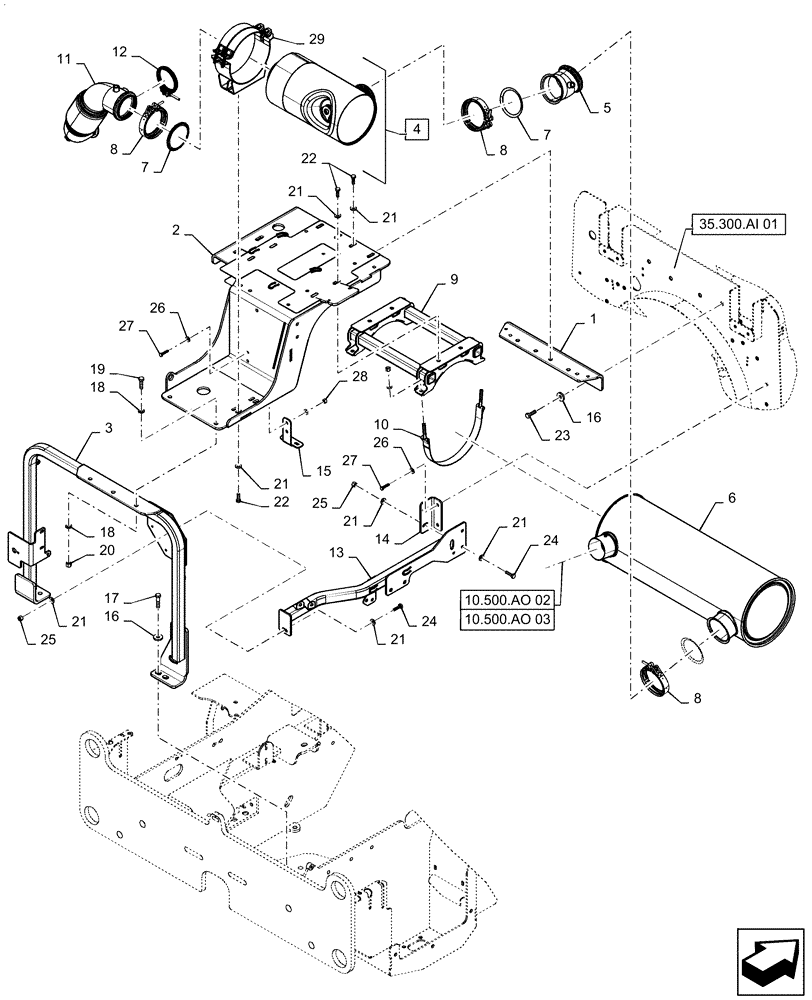

Запчасти Case 521F (10.500.AO[01]) - SELECTIVE CATALYTIC REDUCTION EXHAUST SYSTEM (10) - ENGINE

1

47702004

SUPPORT

Exhaust Mounting to Cooling Frame

1шт.

2

47715381

SUPPORT

Exhaust System Main

1шт.

3

47732032

SUPPORT

Exhaust Main to Frame

1шт.

4

47584116

MUFFLER

DOC, Incl 29

1шт.

5

47894578

PIPE

DOC to SCR

1шт.

6

47713292

MUFFLER

SCR

1шт.

7

84349222

GASKET,1.3mm Thk

Exhaust

3шт.

8

47390967

CLAMP,123.5mm ID

4 Inch

3шт.

9

47715384

FRAME

SCR Mount

1шт.

10

47472949

STRAP

SCR Securing

2шт.

11

47894579

PIPE

Turbo to DOC

1шт.

12

47461754

CLAMP

Turbo Flap, 4 Inch

1шт.

13

47748324

SUPPORT

Supply Module

1шт.

14

47748077

BRACKET

Rear Support to Cooling Frame

1шт.

15

47589058

BRACKET

Support Hanger

1шт.

16

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

8шт.

17

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

19

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

20

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

21

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

18шт.

22

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

23

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

24

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

26

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

27

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.

28

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

29

47619913

BRACKET

DOC Mount

1шт.
