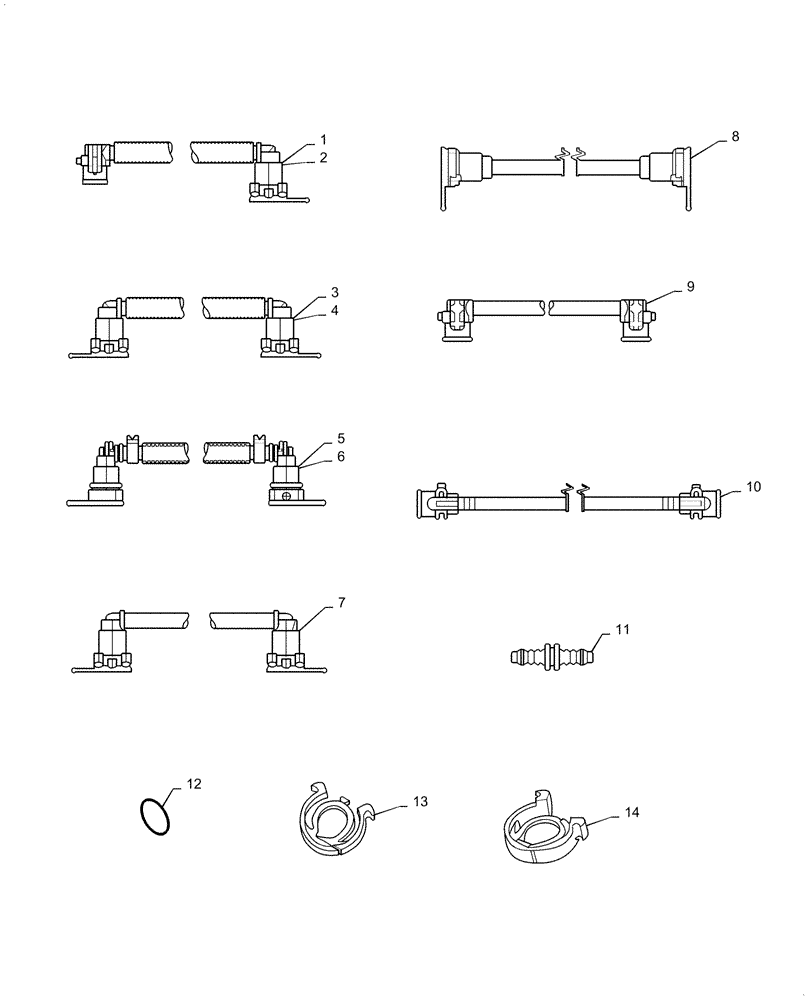

Запчасти Case 521F (10.500.AD[05]) - DEF LINE SERVICE PARTS (10) - ENGINE

1

47777425

HOSE

8mm OD x 1mm Thick Wall x 1500mm L, Tank to Pumping Module, Suction, Incl 12

1шт.

End 1: 90 Degree Male, White Release Tab, 12mm OD. End 2: 90 Degree Female, 3/8", LH, SV241

1шт.

2

47777430

HOSE

8mm OD x 1mm Thick Wall x 5500mm L, Tank to Pumping Module, Suction, Incl 12

1шт.

End 1: 90 Degree Male, White Release Tab, 12mm OD. End 2: 90 Degree Female, 3/8", LH, SV241

1шт.

3

47777432

HOSE

8mm OD x 1mm Thick Wall x 1500mm L, Pumping Module to Tank, Return, Incl 12

1шт.

End 1: 90 Degree Male, Black Release Tab, 12mm OD. End 2: 90 Degree Female, 3/8", LH, SV241

1шт.

4

47777434

HOSE

8mm OD x 1mm Thick Wall x 5500mm L, Pumping Module to Tank, Return, Incl 12

1шт.

End 1: 90 Degree Male, Black Release Tab, 12mm OD. End 2: 90 Degree Female, 3/8", LH, SV241

1шт.

5

47777441

HOSE

8mm OD x 1mm Thick Wall x 1500mm L, Pressure Line

1шт.

End 1 & 2: 90 Degree Female, 5/16" LH, SV241.

1шт.

6

47777445

HOSE

8mm OD x 1mm Thick Wall x 5500mm L, Pressure Line

1шт.

End 1 & 2: 90 Degree Female, 5/16" LH, SV241.

1шт.

7

47777342

HOSE

8mm OD x 1mm Thick Wall x 1100mm L, Used to Replace Damaged Fitting, Pumping Module

1шт.

Cut Tube and Splice to Existing line with 47777447, Special Tool Required. End 1: 90 Degree Female, 3/8" RH, SV241. End 2: 90 Degree Female, 3/8", LH, SV241

1шт.

8

47777345

HOSE

8mm OD x 1mm Thick Wall x 1100mm L, Used to Replace Damaged Fitting, Pumping Module

1шт.

Cut Tube and Splice to Existing line with 47777447, Special Tool Required. End 1 & 2: Straight Female, 3/8", SV241.

1шт.

9

47777353

HOSE

8mm OD x 1mm Thick Wall x 1100mm L, Incl 12, Used to Replace Damaged Fitting, DEF Tank Sending Unit

1шт.

Cut Tube and Splice to Existing line with 47777447, Special Tool Required. End 1: 90 Degree Male, Black Release Tab, 12mm OD. End 2: 90 Degree Male, White Release Tab, 12mm OD.

1шт.

10

47777422

HOSE

8mm OD x 1mm Thick Wall x 1100mm L, Incl 12, Used to Replace Damaged Fitting, DEF Inline Filter

1шт.

Cut Tube and Splice to Existing line with 47777447, Special Tool Required. End 1: Straight Male, Black Release Tab, 12mm OD. End 2: Straight Male, White Release Tab, 12mm OD.

1шт.

11

47777447

FITTING

Connector. Special Tool Required

1шт.

Use Tool Kit 84480641 or 47655259

1шт.

12

84480616

O-RING

DEF/ADBLUE Fittings Only, Lube With DEF/ADBLUE Only

1шт.

13

84480617

UNION

Clip, 5/16"

1шт.

14

84480618

UNION

Clip, 3/8"

1шт.
