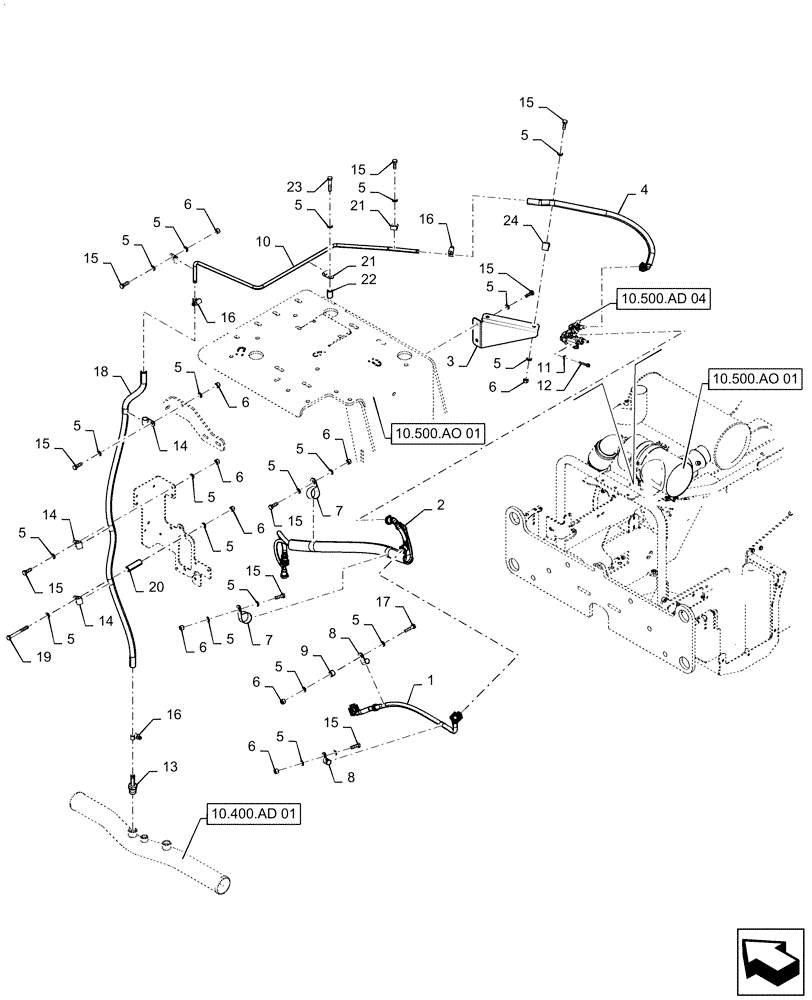

Запчасти Case 521F (10.500.AD[02]) - DEF AND COOLANT LINE INSTALLATION (10) - ENGINE

1

47575239

HOSE

Coolant, Heater Valve to DEF Injector

1шт.

2

47575280

HOSE

DEF, Supply Module to Injector

1шт.

3

47757088

BRACKET

Coolant Return Hose Mounting

1шт.

4

47757147

HOSE

Coolant Return, DEF Injector to Cooling System

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

27шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

10шт.

7

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

2шт.

8

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

9

84238738

SPACER,10.34mm ID x 15.88mm OD x 12mm L

1шт.

10

47741821

TUBE

Coolant Return, Steel, 10mm OD, 943.8mm L

1шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

12

120162

HEX SOC SCREW,M6 x 35mm, Cl 8.8

3шт.

13

84214053

HYD CONNECTOR

3/8" ID Beaded Stem, 1/2" NPTF

1шт.

14

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

3шт.

15

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

11шт.

16

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

3шт.

17

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

1шт.

18

47742330

HOSE

Coolant, Return, 3/8" ID x1063mm L

1шт.

19

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

1шт.

20

86013195

TUBE,10.20 mm ID x 15.87 mm OD x 57 mm L

Coolant Hose Mounting Spacer

1шт.

21

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

3шт.

22

87748964

SPACER

8.4mm ID x 15.8mm OD x 23mm L

1шт.

23

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

1шт.

24

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.
